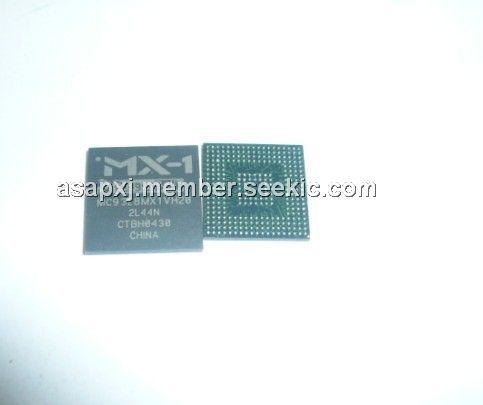

Product Summary

The MC9328MX1VH20 is a microprocessor. It has demonstrated leadership in the portable handheld market. Continuing this legacy, the MC9328MX1VH20 provides a leap in performance with an ARM9 microprocessor core and highly integrated system functions. The MC9328MX1VH20 specifically address the requirements of the personal, portable product market by providing intelligent integrated peripherals, an advanced processor core, and power management capabilities.

Parametrics

MC9328MX1VH20 absolute maximum ratings:(1)Vdd, Supply voltage: -0.3 to 3.3 V; (2)TA, Maximum operating temperature range: 0 to 70℃; (3)VESD_HBM, ESD at human body model (HBM): 2000 V; (4)VESD_MM, ESD at machine model (MM): 100 V; (5)ILatchup, Latch-up current: 200 mA; (6)Test, Storage temperature: -55 to 150℃; (7)Pmax, Power Consumption: 800 to 1300 mW.

Features

MC9328MX1VH20 features: (1)ARM920T Microprocessor Core; (2)AHB to IP Bus Interfaces (AIPIs); (3)External Interface Module (EIM); (4)SDRAM Controller (SDRAMC); (5)DPLL Clock and Power Control Module; (6)Three Universal Asynchronous Receiver/Transmitters (UART 1 UART 2 and UART 3); (7)Two Serial Peripheral Interfaces (SPI); (8)Two General-Purpose 32-bit Counters/Timers; (9)Watchdog Timer; (10)Real-Time Clock/Sampling Timer (RTC); (11)LCD Controller (LCDC); (12)Pulse-Width Modulation (PWM) Module; (13)Universal Serial Bus (USB) Device; (14)Multimedia Card and Secure Digital (MMC/SD) Host Controller Module; (15)Memory StickHost Controller (MSHC); (16)SmartCard Interface Module (SIM); (17)Direct Memory Access Controller (DMAC); (18)Two Synchronous Serial Interfaces and Inter-IC Sound (SSI 1 and SSI 2/I2S) Module; (19)Inter-IC (I2C) Bus Module; (20)Video Port; (21)General-Purpose I/O (GPIO) Ports; (22)Bootstrap Mode.

Diagrams

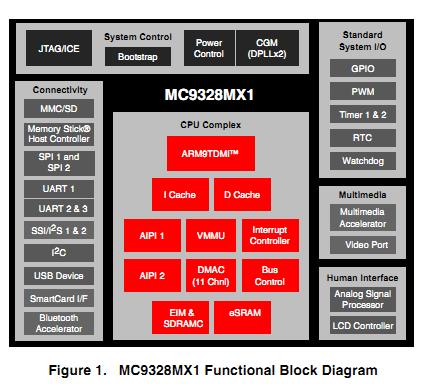

MC9328MX1VH20 functional block diagram
