Product Summary
The M93C66-MN6T is an electrically erasable programmable memory (EEPROM) device. It is accessed through a Serial Data input (D) and Serial Data output (Q) using the MICROWIRE bus protocol.
Parametrics
M93C66-MN6T absolute maximum ratings: (1)Ambient operating temperature: -40 to 130 ℃; (2)Storage temperature: -65 to 150 ℃; (3)lead temperature during soldering: 260 ℃; (4)Output range (Q = VOH or Hi-Z): -0.50 to VCC+0.5 V; (5)Input range: -0.50 to VCC+1 V; (6)Supply voltage: -0.50 to 6.5 V; (7)Electrostatic discharge voltage (human body model): -4000 to 4000 V.
Features
M93C66-MN6T features: (1)Industry standard MICROWIRE bus; (2)Single supply voltage: 4.5 V to 5.5 V; (3)Dual organization: by word (x16) or byte (x8); (4)Programming instructions that work on: byte, word or entire memory; (5)Self-timed programming cycle with autoerase: 5 ms; (6)READY/BUSY signal during programming; (7)2 MHz clock rate; (8)Sequential read operation; (9)Enhanced ESD/latch-up behavior; (10)More than 1 million write cycles; (11)More than 40 year data retention; (12)Packages: ECOPACK (RoHS compliant).

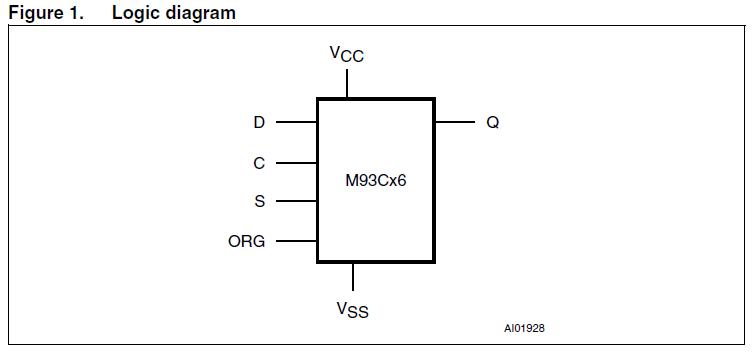

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 M93C66-MN6T |
STMicroelectronics |
EEPROM 4K (512x8 or 256x16) |
Data Sheet |
Negotiable |
|
||||||
 |
M93C66-MN6TP |
|
IC EEPROM 4KBIT 2MHZ 8SOIC |
Data Sheet |
|
|
||||||
