Product Summary
The LTC1440CMS8 is an ultralow power single and dual comparator with built-in references. The comparator features less than 3.7mA supply current over temperature (LTC1440), a 1.182V ±1% reference, programmable hysteresis (LTC1440/LTC1442) and TTL/CMOS outputs that sink and source current. The reference output can drive a bypass capacitor of up to 0.01mF without oscillation. The applications of the LTC1440CMS8 include Battery-Powered System Monitoring, Threshold Detectors, Window Comparators, Oscillator Circuits.
Parametrics
LTC1440CMS8 absolute maximum ratings: (1)Voltage, V+ to V-, V + to GND, GND to V–: 12V to -0.3V; IN+, IN-, HYST: (V + + 0.3V) to (V- -0.3V); REF: (V + + 0.3V) to (V- -0.3V); OUT (LTC1440): (V + + 0.3V) to (GND -0.3V); OUT (LTC1441/LTC1442): (V+ + 0.3V) to (V- -0.3V); (2)Current, IN+, IN-, HYST: 20mA; REF: 20mA; OUT: 50mA; (3)OUT Short-Circuit Duration (V+ ≤ 5.5V): Continuous; (4)Power Dissipation: 500mW; (5)Operating Temperature Range: 0℃ to 70℃; (6)Storage Temperature Range: -65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1440CMS8 features: (1)Ultralow Quiescent Current: 2.1mA Typ (LTC1440); (2)Wide Supply Range: Single: 2V to 11V; Dual: ±1V to ±5.5V; (3)Input Voltage Range Includes the Negative Supply; (4)Reference Output Drives 0.01mF Capacitor; (5)Adjustable Hysteresis (LTC1440/LTC1442); (6)TTL/CMOS Compatible Outputs; (7)12ms Propagation Delay with 10mV Overdrive; (8)No Crowbar Current; (9)40mA Continuous Source Current; (10)Pin Compatible Upgrades for MAX921/922/923.

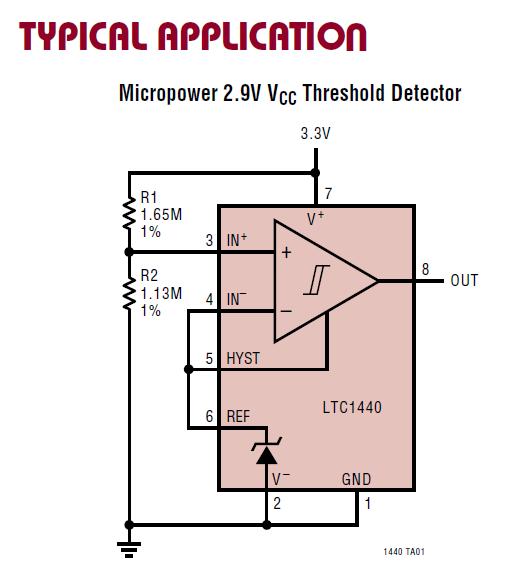

Diagrams
