LTC1430CS

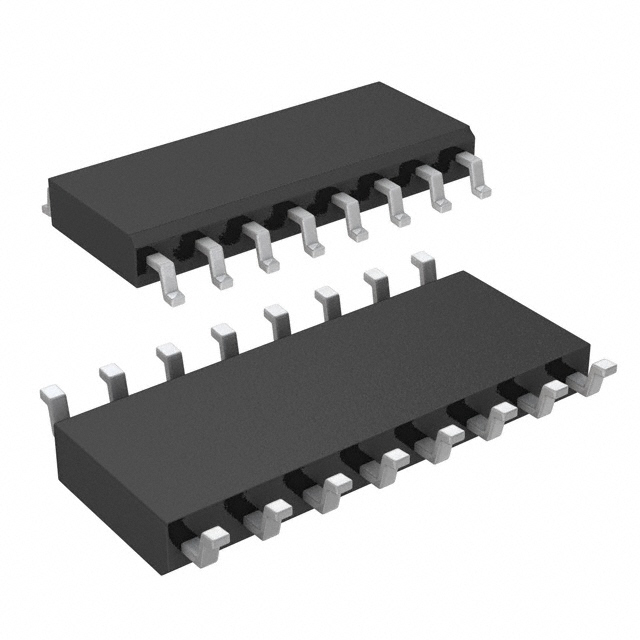

LTC1430CS, Step-Down Switching Regulator Controller, 16SOIC, 9V, 350mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.08~2.08 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.08~2.08

PartNumber:: LTC1430CS

Brand:: Anachip - Diodes | Pack: SO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:LTC1430CS
US $2.08 - 2.08
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
SLA4060

US $0.80 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LTC1430CS is a high power, high efficiency switching regulator controller optimized for 5V to 1.xV-3.xV applications. It includes a precision internal reference and an internal feedback system that can provide output regulation of ±1% over temperature, load current and line voltage shifts. The LTC1430CS uses a synchronous switching architecture with two N-channel output devices, eliminating the need for a high power, high cost P-channel device. The applications of the LTC1430CS include Power Supply for Pentium P6 and Pentium Microprocessors, High Power 5V to 3.xV Regulators, Local Regulation for Dual Voltage Logic Boards, Low Voltage, High Current Battery Regulation.

Parametrics

LTC1430CS absolute maximum ratings: (1)Supply Voltage, VCC: 9V; PVCC1, 2: 13V; (2)Input Voltage, IFB: -0.3V to 18V; All Other Inputs: -0.3V to (VCC + 0.3V); (3)Junction Temperature: 150℃; (4)Operating Temperature Range: 0℃ to 70℃; (5)Storage Temperature Range: -65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC1430CS features: (1)High Power 5V to 3.xV Switching Controller: Can Exceed 10A Output; (2)Maximum Duty Cycle > 90% Permits 3.3V to 2.xV Conversion Using a Low Power 5V Supply; (3)All N-Channel External MOSFETs; (4)Fixed Frequency Operation—Small L; (5)Excellent Output Regulation: ±1% Over Line, Load and Temperature Variations; (6)High Efficiency: Over 95% Possible; (7)No Low Value Sense Resistor Needed; (8)Outputs Can Drive External FETs with Up to 10,000pF Gate Capacitance; (9)Quiescent Current: 350mA Typ, 1mA in Shutdown; (10)Fast Transient Response; (11)Adjustable or Fixed 3.3V Output; (12)Available in 8-Lead SO and 16-Lead GN and SO Packages.
