Product Summary
The LT1129CST-5 is a monolithic high power switching regulator. The device can be operated in all standard switching configurations including buck, boost, flyback, forward, inverting and Cuk. A high current, high efficiency switch is included on the die along with all oscillator, control and protection circuitry. Integration of all functions allows the LT1129CST-5 to be built in a standard 5-pin TO-3 or TO-220 power package as well as the 8-pin packages (LT1172). This makes it extremely easy to use and provides bust proof operation similar to that obtained with 3-pin linear regulators. The applications of the LT1129CST-5 include Logic Supply 5V at 10A, 5V Logic to ±15V Op Amp Supply, Battery Upconverter, Power Inverter (+ to –) or (– to +) and Fully Floating Multiple Outputs.
Parametrics
LT1129CST-5 absolute maximum ratings: (1)Supply Voltage: 60V; (2)Switch Output Voltage: 75V; (3)Feedback Pin Voltage (Transient, 1ms): ±15V; (4)Storage Temperature Range: – 65 to 150℃; (5)Lead Temperature (Soldering, 10 sec): 300℃; (6)Operating Junction Temperature Range: -55 to 150℃.
Features
LT1129CST-5 features: (1)Wide Input Voltage Range: 3V to 60V; (2)Low Quiescent Current: 6mA; (3)Internal 5A Switch; (4)Shutdown Mode Draws Only 50μA Supply Current; (5)Very Few External Parts Required; (6)Self-Protected Against Overloads; (7)Operates in Nearly All Switching Topologies; (8)Flyback-Regulated Mode Has Fully Floating Outputs; (9)Comes in Standard 5-Pin Packages; (10)Can Be Externally Synchronized.

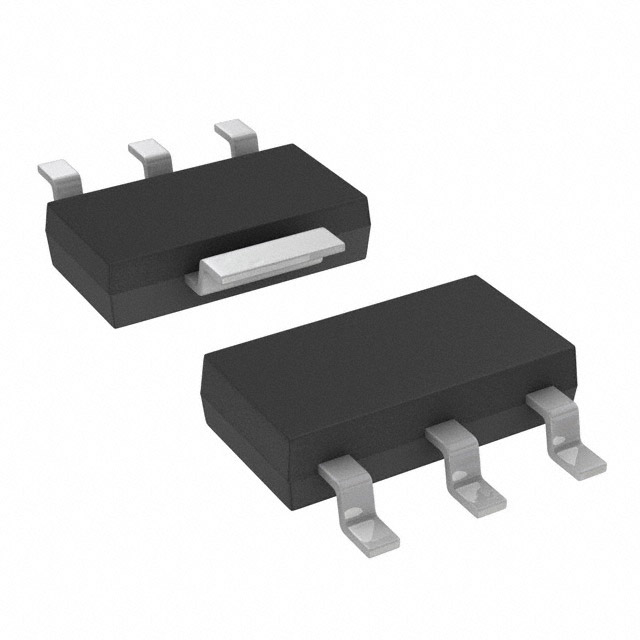

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1129CST-5 |
|
IC REG LDO 5V .7A SOT223-3 |
Data Sheet |
|
|
||||||||||
|
LT1129CST-5#PBF |
|
IC REG LDO 5V .7A SOT223-3 |
Data Sheet |
|
|
||||||||||
|
LT1129CST-5#TR |
|
IC REG LDO 5V .7A SOT223-3 |
Data Sheet |
|
|
||||||||||
|
LT1129CST-5#TRPBF |
|
IC REG LDO 5V .7A SOT223-3 |
Data Sheet |
|
|
||||||||||
