Product Summary
The LQW2BHNR15J is the high frequency wound chip coil which consists of air-core chip coil using a sub-miniature alumina core as a bobbin. The LQW2BHNR15J has excellent solder heat resistance. Both flow and reflow soldering methods can be employed.
Parametrics
LQW2BHNR15J absolute maximum ratings: (1)Inductance: 150 ±5% nH; (2)Test Frequency(MHz): 100; (3)Rated Current(mA): 390; (4)DC Resistance(ohm): 0.47 max.; (5)Q(min.): 30; (6)Self Resonance Frequency (min.)(MHz): 350.
Features
LQW2BHNR15J features: (1)Inductance: 2.7 to 27nH; (2)DC resistance: 0.02 to 0.06 ohm; (3)Q value: 85 to 95 (Typ.) at 800MHz; (4)Rated current: 900 to 1900mA.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

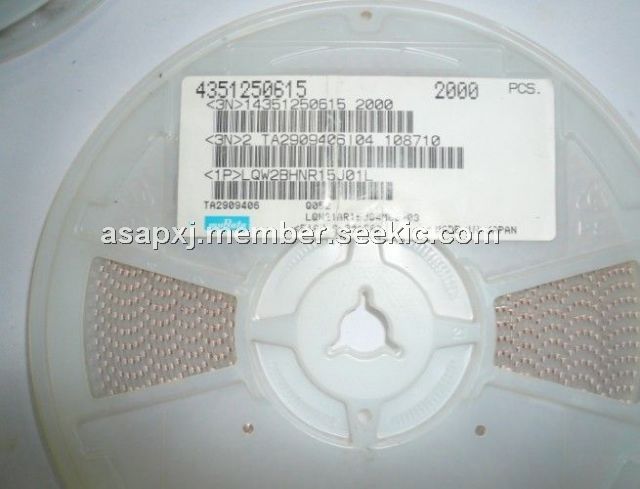

 LQW2BHNR15J01L |
Murata |
RF Inductors 0805 0.15nH +/-5% |
Data Sheet |
Negotiable |
|
||||||||||||
|
LQW2BHNR15J03L |
Murata |
RF Inductors 0805 0.15uH +/-5% Chip Inductor |
Data Sheet |
|
|
||||||||||||
