Product Summary

The LQW15AN7N5 is a High Frequency Winding Type chip coil. It consists of air core chip coil using a miniature alumina core. The tight inductance tolerance (±0.2nH, ±3%) is available due to Murata’s original winding technology. The LQW15AN7N5 has high Q value in high frequency range and high self resonant frequency. It is suitable for high frequency circuits which are used in telecommunication equipment. The applications of the LQW15AN7N5 are PA, ANT, VCO, SAW, GSM, CDMA, PDC, “Bluetooth”, W-LAN, High frequency circuits in general.

Parametrics

LQW15AN7N5 general specifications: (1)inductance:7.5nH±3%; (2)test frequency:100MHz; (3)rated current:570mA; (4)DC resistance:0.13ohm max.; (5)Q(min.):25; (6)test frequency:250MHz; (7)self resonance frequency:6.0GHz min.; (8)EIA:0402.

Features

LQW15AN7N5 features: (1)Horizontal winding structure enables tight inductance tolerance (±0.2nH, ±3%); (2)The subminiature dimensions (1.0x0.5mm) allow high density mounting; (3)The high self resonant frequency realizes high Q value and stable inductance at high frequency; (4)Low DC resistance design is ideal for low loss, high output and low power consumption.; (5)Resin-coated surface enables excellent mounting.

Diagrams

LQW15AN7N5 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LQW15AN7N5C00D
LQW15AN7N5C00D
Murata
RF Inductors 7.5 NH 2%
Data Sheet
0-5100: $0.09
5100-6000: $0.08
6000-9000: $0.08
9000-10000: $0.08
LQW15AN7N5G00D
LQW15AN7N5G00D
Murata
RF Inductors 7.5 NH +-.2NH
Data Sheet
0-1: $0.17
1-10000: $0.08
10000-20000: $0.08
20000-30000: $0.07
LQW15AN7N5J00D
LQW15AN7N5J00D
Murata
RF Inductors 7.5 NH 5%
Data Sheet
0-1: $0.16
1-50: $0.14
50-100: $0.13
100-500: $0.10

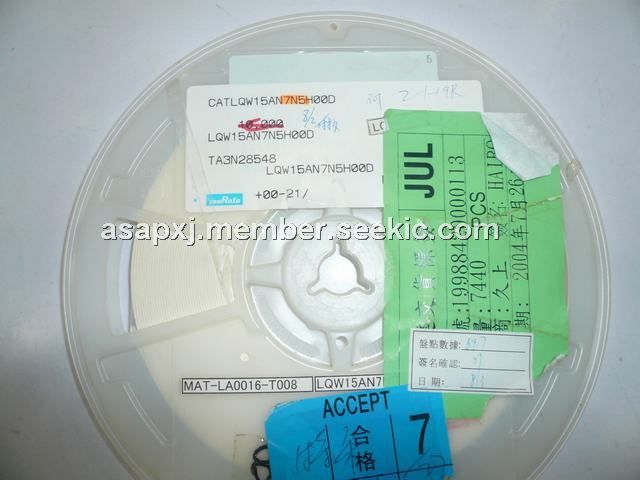

LQW15AN7N5H00D
LQW15AN7N5H00D
Murata
RF Inductors 7.5 NH 2%
Data Sheet
0-1: $0.17
1-100: $0.14
100-500: $0.11
500-1000: $0.09
