Product Summary

The LM393DR is a dual differential comparator. It consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships. The LM393DR is characterized for operation from 0℃ to 70℃.

Parametrics

LM393DR absolute maximum ratings: (1)Supply voltage, VCC: 36 V; (2)Differential input voltage, VID: ±36 V; (3)Input voltage range, VI (either input): -0.3 V to 36 V; (4)Output voltage, VO: 36 V; (5)Output current, IO: 20 mA; (6)Duration of output short-circuit to ground: Unlimited; (7)Package thermal impedance, θJA: D package: 97℃/W, DGK package: 172℃/W, P package: 85℃/W, PS package: 95℃/W, PW package: 149℃/W; (8)Package thermal impedance, θJC: FK package: 5.61℃/W, JG package: 14.5℃/W; (9)Operating virtual junction temperature, TJ: 150℃; (10)Case temperature for 60 seconds: FK package: 260℃; (11)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: JG package: 300℃; (12)Storage temperature range, Tstg: -65℃ to 150℃.

Features

LM393DR features: (1)Wide Range of Supply Voltage: Max Rating: 2 V to 36 V, Tested to 30 V: Non-V Devices, Tested to 32 V: V-Suffix Devices; (2)Low Supply-Current Drain Independent of Supply Voltage: 0.4 mA Typ Per Comparator; (3)Low Input Bias Current: 25 nA Typ; (4)Low Input Offset Current: 3 nA Typ (LM193); (5)Low Input Offset Voltage: 2 mV Typ; (6)Common-Mode Input Voltage Range Includes Ground; (7)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36 V; (8)Low Output Saturation Voltage; (9)Output Compatible With TTL, MOS, and CMOS.

Diagrams

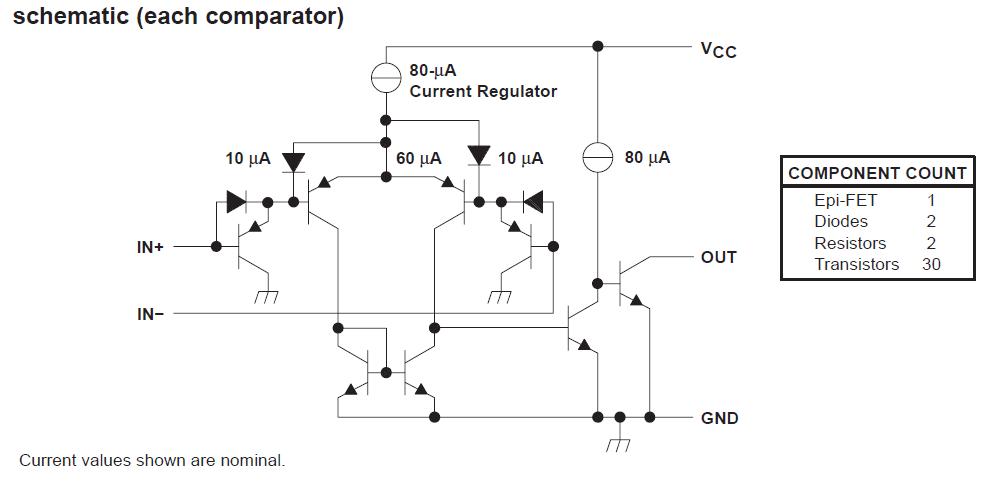

LM393DR schematic

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM393DR
LM393DR

Texas Instruments

Comparator ICs Dual Differential

Data Sheet

0-1: $0.31
1-25: $0.18
25-100: $0.15
100-250: $0.11
LM393DR2
LM393DR2

ON Semiconductor

Comparator ICs 2-36V Dual

Data Sheet

Negotiable
LM393DRE4
LM393DRE4

Texas Instruments

Comparator ICs Dual Differential Comparator

Data Sheet

0-1: $0.19
1-25: $0.16
25-100: $0.12
100-250: $0.08
LM393DRG4
LM393DRG4

Texas Instruments

Comparator ICs Dual Differential Comparator

Data Sheet

0-1: $0.22
1-25: $0.18
25-100: $0.13
100-250: $0.09
LM393DRG3
LM393DRG3

Texas Instruments

Comparator ICs Dual Diff Comparator

Data Sheet

0-1: $0.33
1-25: $0.19
25-100: $0.15
100-250: $0.11
LM393DR2G
LM393DR2G

ON Semiconductor

Comparator ICs 2-36V Dual Commercial Temp

Data Sheet

0-1: $0.26
1-25: $0.17
25-100: $0.14
100-500: $0.09
