Product Summary
The LM339MX is a quad differential comparator. The LM339MX consists of four independent voltage comparators that is designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs of the LM339MX can be connected to other open-collector outputs to achieve wired-AND relationships.
Parametrics
LM339MX absolute maximum ratings: (1)VCC, Supply voltage: 36 V; (2)VID, Differential input voltage: ±36 V; (3)VI, Input voltage range (either input): –0.3 to 36 V; (4)VO, Output voltage: 36 V; (5)IO, Output current: 20 mA; (6)Duration of output short circuit to ground: 86℃/W; (7)θJA, Package thermal impedance: 80℃/W; (8)θJC, Package thermal impedance: 15.05℃/W; (9)TJ, Operating virtual junction temperature: 150℃; (10)Tstg, Storage temperature range: –65 to 150℃.
Features
LM339MX features: (1)Single Supply or Dual Supplies; (2)Wide Range of Supply Voltage: Max Rating: 2 V to 36 V; Tested to 30 V: Non-V Devices; Tested to 32 V: V-Suffix Devices; (3)Low Supply-Current Drain Independent of Supply Voltage: 0.8 mA Typ; (4)Low Input Bias Current: 25 nA Typ; (5)Low Input Offset Voltage: 2 mV Typ; (6)Common-Mode Input Voltage Range Includes Ground; (7)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36 V; (8)Low Output Saturation Voltage; (9)Output Compatible With TTL, MOS, and CMOS.

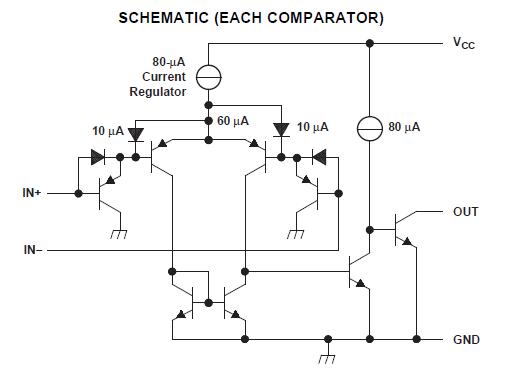

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM339MX |
Fairchild Semiconductor |

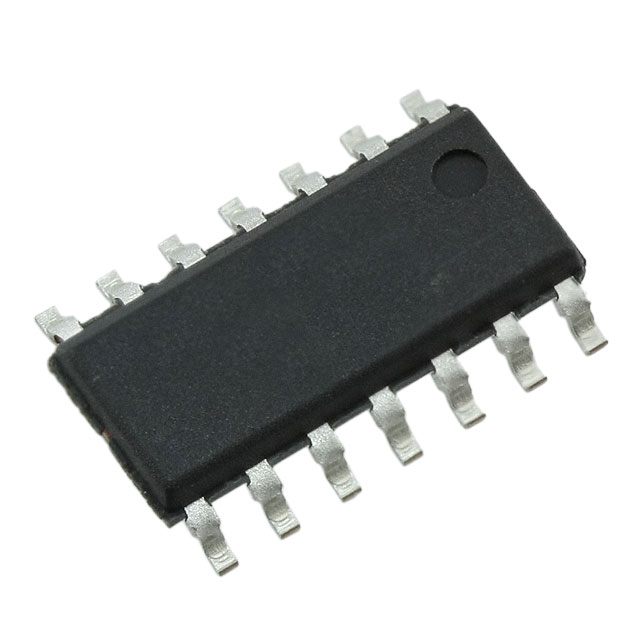

Comparator ICs SOP-14 Quad |
Data Sheet |
|
|
||||||||||||
|
LM339MX/NOPB |
National Semiconductor (TI) |
Comparator ICs LOW PWR LOW OFFSET VLTG QUAD COMPARATOR |
Data Sheet |
|
|
||||||||||||
