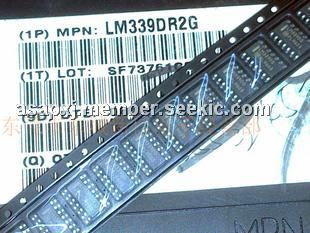

LM339DR2G

SOIC-14, Single Supply Quad Comparator, 25nA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: LM339DR2G

Brand:: ON Semiconductor - ON | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-26

From Other Seller

Part Number:LM339DR2G
US $0.10 - 1.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM339DR2G is a Single Supply Quad Comparator. It is designed for use in level detection, low-level sensing and memory applications in consumer, automotive, and industrial electronic applications.

Parametrics

LM339DR2G absolute maximum ratings: (1)Power Supply Voltage:+36Vdc or ±18Vdc; (2)Input Differential Voltage Range:36Vdc; (3)Input Common Mode Voltage Range:-0.3Vdc to VCC; (4)Output Short Circuit to Ground:Continuous; (5)Power Dissipation @ TA = 25℃:Plastic Package:1.0W, Derate above 25℃:8.0mW/℃; (6)Junction Temperature:150℃; (7)Operating Ambient Temperature Range:0℃ to +70℃; (8)Storage Temperature Range:-65℃ to +150℃; (9)ESD Protection at any Pin:Human Body Model:1500V, Machine Model:200V.

Features

LM339DR2G features: (1)Single or Split Supply Operation; (2)Low Input Bias Current: 25 nA (Typ); (3)Low Input Offset Current: ±5.0 nA (Typ); (4)Low Input Offset Voltage; (5)Input Common Mode Voltage Range to GND; (6)Low Output Saturation Voltage: 130 mV (Typ) @ 4.0 mA; (7)TTL and CMOS Compatible; (8)ESD Clamps on the Inputs Increase Reliability without Affecting Device Operation; (9)NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes; (10)Pb-Free Packages are Available.
