Product Summary
The LM324PWR is a quadruple operational amplifier. It consists of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V (3 V to 26 V for the LM2902), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain of LM324PWR is independent of the magnitude of the supply voltage. Applications of LM324PWR include transducer amplifiers, dc amplification blocks, and all the conventional operational-amplifier circuits that now can be more easily implemented in single-supply-voltage systems.
Parametrics
LM324PWR absolute maximum ratings: (1)Supply voltage, VCC: ±16 or 32 V; (2)Differential input voltage, VID: ±32 V; (3)Input voltage, VI (either input): -0.3 to 32 V; (4)Duration of output short circuit (one amplifier) to ground at (or below) TA = 25℃, VCC ≤ 15 V: Unlimited; (5)Package thermal impedance, θJA: D package 86 ℃/W, N package 80 ℃/W, DB package 96 ℃/W, NS package 76 ℃/W, PW package 113 ℃/W; (6)Operating virtual junction temperature, TJ: 150 ℃; (7)Case temperature for 60 seconds FK package: 260 ℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds J or W package: 300 ℃; (9)Storage temperature range, Tstg: -65 to 150 ℃.
Features
LM324PWR features: (1)2-kV ESD Protection for: LM224K, LM224KA, LM324K, LM324KA, LM2902K, LM2902KV, LM2902KAV; (2)Wide Supply Ranges: Single Supply 3 V to 32 V (26 V for LM2902); (3)Dual Supplies: ±1.5 V to ±16 V (±13 V for LM2902); (4)Low Supply-Current Drain Independent of Supply Voltage 0.8 mA Typ; (5)Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground.

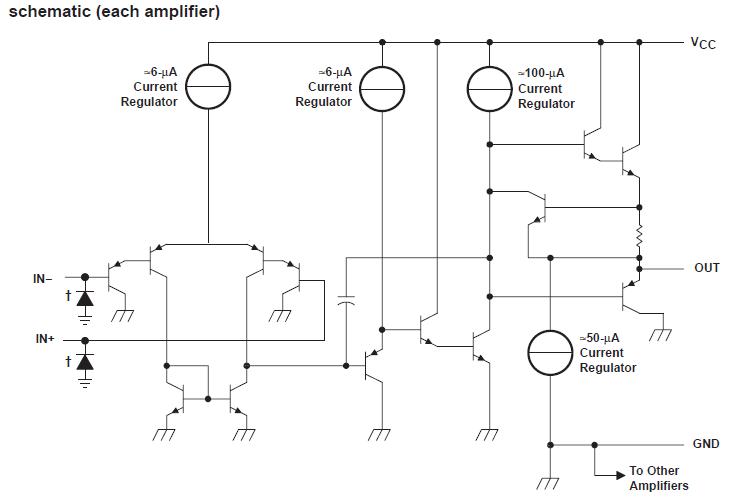

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM324PWR |
Texas Instruments |
Operational Amplifiers - Op Amps Quad GP Op Amp |
Data Sheet |
|
|
||||||||||||
|
LM324PWRE4 |
Texas Instruments |
Operational Amplifiers - Op Amps Quad General-Purpose Op Amp |
Data Sheet |
|
|
||||||||||||
|
LM324PWRG3 |
Texas Instruments |
Operational Amplifiers - Op Amps Quadruple Op Amp |
Data Sheet |
|
|
||||||||||||
|
LM324PWRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Quad General-Purpose Op Amp |
Data Sheet |
|
|
||||||||||||
