LM308AN

operational amplifier, DIP, ±18V, 500 mW, low offset voltage, 300 μA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~5.00

PartNumber:: LM308AN

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-22

From Other Seller

Part Number:LM308AN
US $0.10 - 5.00
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

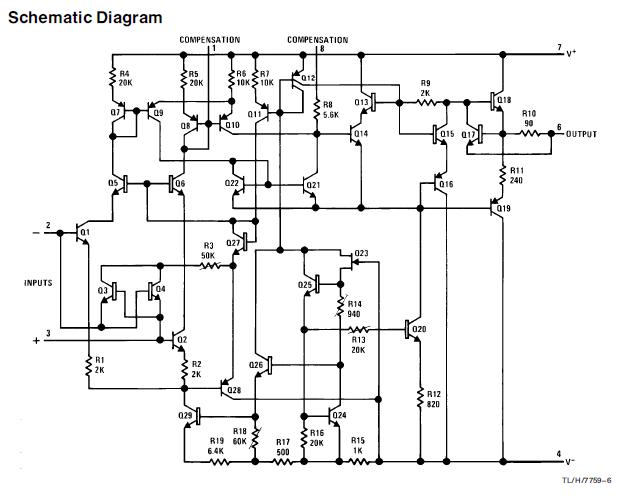

The LM308AN is a precision operational amplifier having specifications about a factor of ten better than FET amplifiers over their operating temperature range. In addition to low input currents, the LM308AN has extremely low offset voltage, making it possible to eliminate offset adjustments, in most cases, and obtain performance approaching chopper stabilized amplifiers. It operates with supply voltages from ±2V to ±18V and have sufficient supply rejection to use unregulated supplies. Although the circuit of LM308AN is interchangeable with and uses the same compensation as the LM101A, an alternate compensation scheme can be used to make it particularly insensitive to power supply noise and to make supply bypass capacitors unnecessary.

Parametrics

LM308AN absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Power Dissipation: 500 mW; (3)Differential Input Current: ±10 mA; (4)Input Voltage: ±15V; (5)Output Short-Circuit Duration Continuous; (6)Operating Temperature Range: 0℃ to a70℃; (7)Storage Temperature Range: -65℃ to a150℃; (8)H-Package Lead Temperature (Soldering, 10 sec.): 300℃; (9)Lead Temperature (Soldering, 10 sec.) (DIP): 260℃.

Features

LM308AN features: (1)Offset voltage guaranteed less than 0.5 mV; (2)Maximum input bias current of 3.0 nA over temperature; (3)Offset current less than 400 pA over temperature; (4)Supply current of only 300 μA, even in saturation; (5)Guaranteed 5 mV/℃ drift.
