Product Summary
The LM293DR is a dual differential comparator. It consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies of LM293DR also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs of LM293DR can be connected to other open-collector outputs to achieve wired-AND relationships.
Parametrics
LM293DR absolute maximum ratings: (1)Supply voltage, VCC: 36 V; (2)Differential input voltage, VID: ±36 V; (3)Input voltage range, VI (either input): -0.3 V to 36 V; (4)Output voltage, VO: 36 V; (5)Output current, IO: 20 mA; (6)Duration of output short-circuit to ground: Unlimited; (7)Package thermal impedance, θJA: D package: 97℃/W, DGK package: 172℃/W, P package: 85℃/W, PS package: 95℃/W, PW package: 149℃/W; (8)Package thermal impedance, θJC: FK package: 5.61℃/W, JG package: 14.5℃/W; (9)Operating virtual junction temperature, TJ: 150℃; (10)Case temperature for 60 seconds: FK package: 260℃; (11)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: JG package: 300℃; (12)Storage temperature range, Tstg: -65℃ to 150℃.
Features
LM293DR features: (1)Wide Range of Supply Voltage: Max Rating: 2 V to 36 V, Tested to 30 V: Non-V Devices, Tested to 32 V: V-Suffix Devices; (2)Low Supply-Current Drain Independent of Supply Voltage: 0.4 mA Typ Per Comparator; (3)Low Input Bias Current: 25 nA Typ; (4)Low Input Offset Current: 3 nA Typ (LM193); (5)Low Input Offset Voltage: 2 mV Typ; (6)Common-Mode Input Voltage Range Includes Ground; (7)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36 V; (8)Low Output Saturation Voltage; (9)Output Compatible With TTL, MOS, and CMOS.

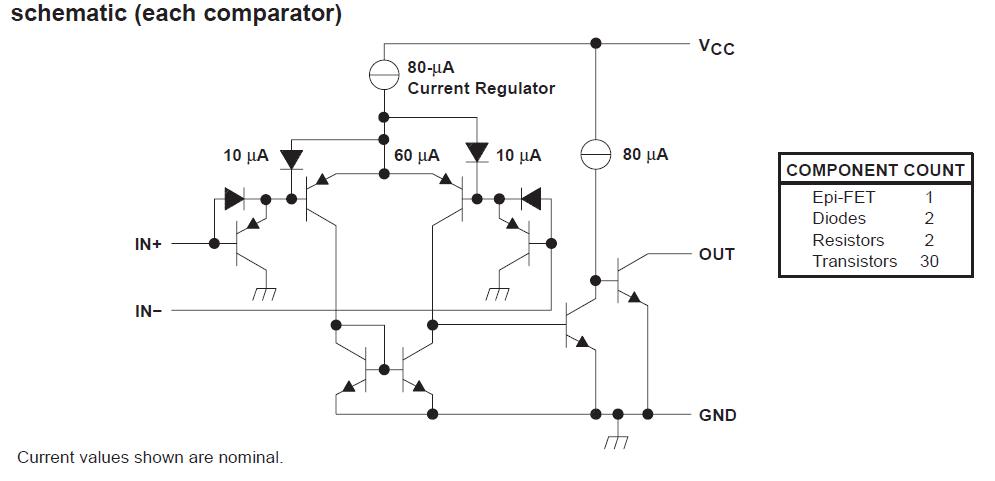

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM293DR |
Texas Instruments |
Comparator ICs Dual Differential |
Data Sheet |
|
|
||||||||||||
|
LM293DR2 |
ON Semiconductor |
Comparator ICs 2-36V Dual |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM293DR2G |
ON Semiconductor |
Comparator ICs 2-36V Dual -25 to 85 deg C |
Data Sheet |
|
|
||||||||||||
|
LM293DRG3 |
Texas Instruments |
Comparator ICs Dual Diff Comparator |
Data Sheet |
|
|
||||||||||||
|
LM293DRG4 |
Texas Instruments |
Comparator ICs Dual Differential Comparator |
Data Sheet |
|
|
||||||||||||
|
LM293DRE4 |
Texas Instruments |
Comparator ICs Dual Differential Comparator |
Data Sheet |
|
|
||||||||||||
