Product Summary
The LM2901DR is a quad differential comparator, which consists of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain of the LM2901DR is independent of the supply voltage. The LM2901DR outputs can be connected to other open-collector outputs to achieve wired-AND relationships.
Parametrics
LM2901DR absolute maximum ratings: (1)Supply voltage: 36 V; (2)Differential input voltage: ±36 V; (3)Input voltage range (either input): –0.3 to 36 V; (4)Output voltage: 36 V; (5)Output current: 20 mA; (6)Duration of output short circuit to ground: Unlimited; (7)Package thermal impedance: N package 80 ℃/W, NS package 76 ℃/W; (8)Package thermal impedance: J package 15.05 ℃/W, W package 14.65 ℃/W; (9)Operating virtual junction temperature: 150 ℃; (10)Case temperature for 60 s: 260 ℃; (11)Lead temperature 1,6 mm (1/16 in) from case for 60 s: 300 ℃; (12)Storage temperature range: –65 to 150 ℃.
Features
LM2901DR features: (1)Single Supply or Dual Supplies; (2)Wide Range of Supply Voltage: Max Rating: 2 V to 36 V, Tested to 30 V: Non-V Devices, Tested to 32 V: V-Suffix Devices; (3)Low Supply-Current Drain Independent of Supply Voltage: 0.8 mA Typ; (4)Low Input Bias Current: 25 nA Typ; (5)Low Input Offset Current: 3 nA Typ (LM139); (6)Low Input Offset Voltage: 2 mV Typ; (7)Common-Mode Input Voltage Range Includes Ground; (8)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36 V; (9)Low Output Saturation Voltage; (10)Output Compatible With TTL, MOS, and CMOS.

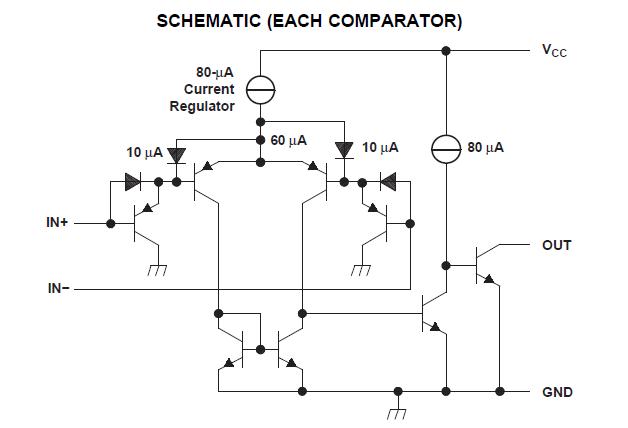

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM2901DR |
Texas Instruments |
Comparator ICs Quad Diff Ind Temp |
Data Sheet |
|
|
||||||||||||
|
LM2901DR2 |
ON Semiconductor |
Comparator ICs 3-36V Qud Comparator |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM2901DRG3 |
Texas Instruments |
Comparator ICs Quad Diff Comparator |
Data Sheet |
|
|
||||||||||||
|
LM2901DR2G |
ON Semiconductor |
Comparator ICs 3-36V Qud Comparator -40 to 105 deg C |
Data Sheet |
|
|
||||||||||||
|
LM2901DRG4 |
Texas Instruments |
Comparator ICs Quad Differential Comparator |
Data Sheet |
|
|
||||||||||||
|
LM2901DRE4 |
Texas Instruments |
Comparator ICs Quad Differential Comparator |
Data Sheet |
|
|
||||||||||||
