Product Summary
The LM22672MRX is a regulator. It is a monolithic integrated circuit which provides all of the active functions for a step-down (buck) switching regulator capable of driving up to 1A loads with excellent line and load regulation characteristics. High efficiency (>90%) is obtained through the use of a low ON-resistance N-channel MOSFET. The LM22672MRX consists of a fixed 5V output and an adjustable version. The applications of the LM22672MRX include Industrial Control, Telecom and Datacom Systems, Embedded Systems, Automotive Telematics and Body Electronics and Conversions from Standard 24V, 12V and 5V Input Rails.
Parametrics
LM22672MRX absolute maximum ratings: (1)VIN to GND: 43V; (2)EN Pin Voltage: -0.5V to 6V; (3)SS, RT/SYNC Pin Voltage: -0.5V to 7V; (4)SW to GND: -5V to VIN; (5)BOOT Pin Voltage: VSW + 7V; (6)FB Pin Voltage: -0.5V to 7V; (7)Power Dissipation: Internally Limited; (8)Junction Temperature: 150℃; (9)Soldering Information, Infrared (5 sec.): 260℃; (10)ESD Rating: ±2 kV; (11)Storage Temperature Range: -65 to +150℃.
Features
LM22672MRX features: (1)Wide input voltage range: 4.5V to 42V; (2)Internally compensated voltage mode control; (3)Stable with low ESR ceramic capacitors; (4)200 mΩ N-channel MOSFET; (5)Output voltage options: ADJ (outputs as low as 1.285V); 5.0 (output fixed to 5V); (6)±1.5% feedback reference accuracy; (7)Switching frequency of 500 kHz, adjustable between 200kHz and 1 MHz; (8)-40 to 125℃ operating junction temperature range; (9)Precision enable pin; (10)Integrated boot diode; (11)Adjustable soft-start; (12)Fully WEBENCH enabled; (13)Step-down and inverting buck-boost applications.

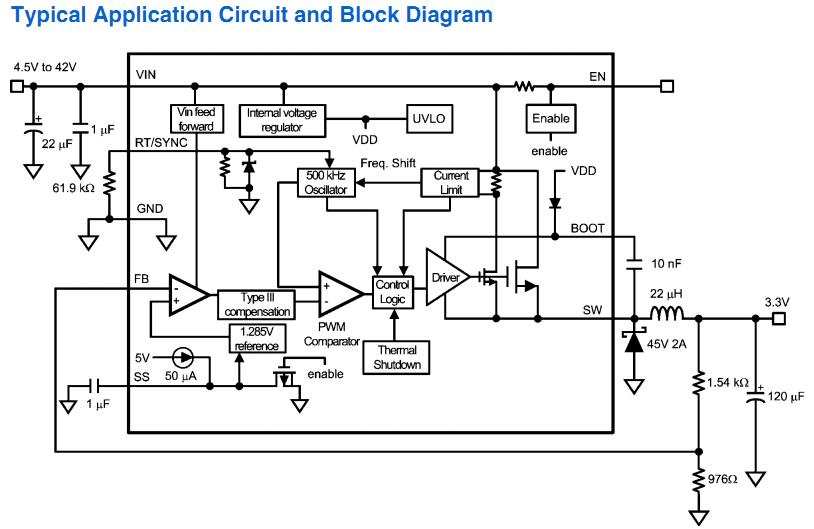

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM22672MRX-5.0/NOPB |
National Semiconductor (TI) |
Switching Converters, Regulators & Controllers |
Data Sheet |
|
|
||||||||||
|
LM22672MRX-ADJ/NOPB |
National Semiconductor (TI) |
Switching Converters, Regulators & Controllers |
Data Sheet |
|
|
||||||||||
