Product Summary
The LM124DR is a low power quad operational amplifier. It consists of four independent, high gain, internally frequency compensated operational amplifiers. The LM124DR operates froma single power supply over awide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
Parametrics
LM124DR absolute maximum ratings: (1)Supply Voltage: ±16 or 32 V; (2)Input Voltage: -0.3 to +32 V; (3)Differential Input Voltage: +32 V; (4)Power Dissipation: N Suffix: 500 mW; (5)Output Short-circuit Duration: Infinite; (6)Input Current: 50 mA; (7)Operating Free Air Temperature Range: -55 to +125 ℃; (8)Storage Temperature Range: -65 to +150 ℃.
Features
LM124DR features: (1)wide gain bandwidth: 1.3MHz; (2)input common-mode voltage range includes ground; (3)largevoltage gain: 100dB; (4)very lowsupply current/ampli: 375μA; (5)lowinput BIAS current: 20nA; (6)low input offset voltage: 5mV max; (7)lowinput offset current: 2nA; (8)wide power supply range: single supply: +3V to +30V, dual supplies: ±1.5V to ±15V.

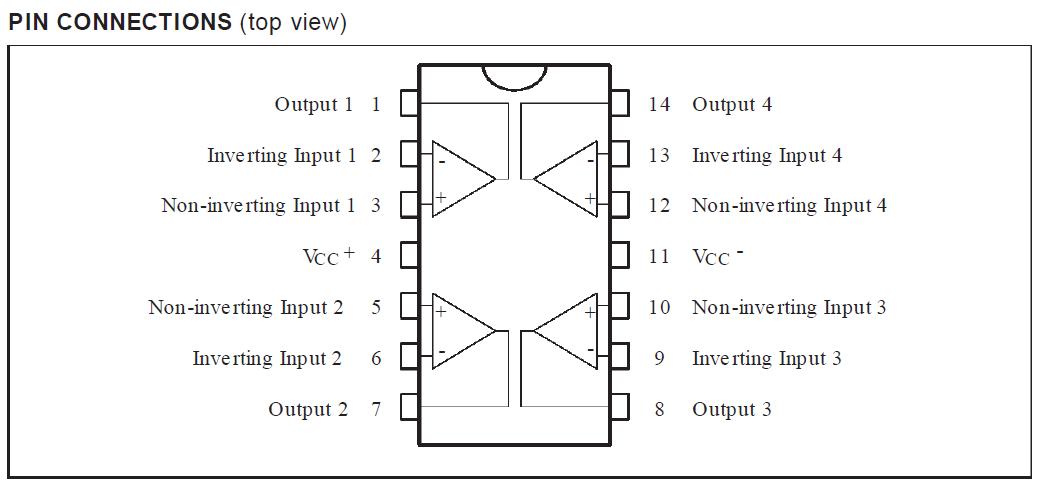

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM124DR |
Texas Instruments |
Operational Amplifiers - Op Amps Quad General Purp Op Amp |
Data Sheet |
|
|
||||||||||||
|
LM124DRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Quad Op Amp |
Data Sheet |
|
|
||||||||||||
