LIS331DLHTR

three axes linear accelerometer, 16-LGA, 2.16 V to 3.6 V, 10 μA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.95~0.98 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.95~0.98

PartNumber:: LIS331DLHTR

Brand:: STMicroelectronics - ST | Pack: QFN | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-03

From Other Seller

Part Number:LIS331DLHTR
US $0.95 - 0.98
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

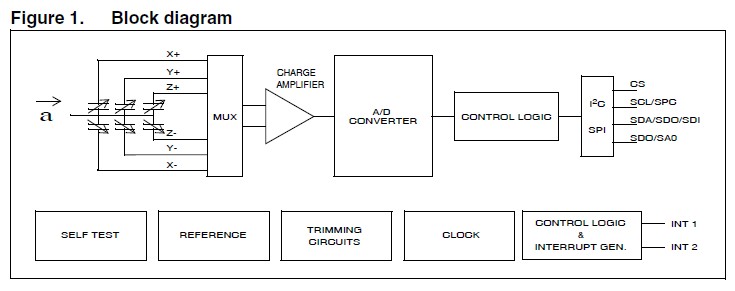

The LIS331DLHTR is an ultra low-power high performance three axes linear accelerometer belonging to the “nano” family, with digital I2C/SPI serial interface standard output. The LIS331DLHTR features ultra low-power operational modes that allow advanced power saving and smart sleep to wake-up functions. The device may be configured to generate interrupt signal by inertial wake-up/free-fall events as well as by the position of the device itself. The applications of the LIS331DLHTR include: Motion activated functions, Free-fall detection, Intelligent power saving for handheld devices, Pedometer, Display orientation, Gaming and virtual reality input devices, Impact recognition and logging, Vibration monitoring and compensation.

Parametrics

LIS331DLHTR absolute maximum ratings: (1)Vdd Supply voltage: -0.3 to 6 V; (2)Vdd_IO I/O pins Supply voltage: -0.3 to 6 V; (3)Vin Input voltage on any control pin(CS, SCL/SPC, SDA/SDI/SDO, SDO/SA0): -0.3 to Vdd_IO +0.3 V; (4)APOW Acceleration (any axis, powered, Vdd = 2.5 V): 3000 g for 0.5 ms; (5)AUNP Acceleration (any axis, unpowered): 3000 g for 0.5 ms; (6)TOP Operating temperature range: -40 to +85 ℃; (7)TSTG Storage temperature range: -40 to +125 ℃; (8)ESD Electrostatic discharge protection: 4 (HBM) kV.

Features

LIS331DLHTR features: (1)Wide supply voltage, 2.16 V to 3.6 V; (2)Low voltage compatible IOs, 1.8 V; (3)Ultra low-power mode consumption down to 10 μA; (4)±2g/±4g/±8g dynamically selectable full-scale; (5)I2C/SPI digital output interface; (6)16 bit data output; (7)2 independent programmable interrupt generators for free-fall and motion detection; (8)Sleep to wake-up function; (9)6D orientation detection; (10)Embedded self-test; (11)10000 g high shock survivability; (12)ECOPACKR RoHS and “Green” compliant.
