Product Summary

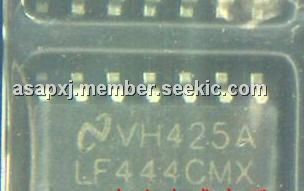

The LF444CMX quad low power operational amplifier provides many of the same AC characteristics as the industry standard LM148 while greatly improving the DC characteristics of the LM148. The amplifier has the same bandwidth, slew rate, and gain (10 kW load) as the LM148 and only draws one fourth the supply current of the LM148. In addition the well matched high voltage JFET input devices of the LF444CMX reduce the input bias and offset currents by a factor of 10,000 over the LM148. The LF444CMX also has a very low equivalent input noise voltage for a low power amplifier.
Parametrics
LF444CMX absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Differential Input Voltage: ±30V; (3)Input Voltage Range: ±15V; (4)Output Short Circuit Duration: Continuous; (5)Power Dissipation: 670 mW; (6)Tj max: 115℃; (7)qjA (Typical): 85℃/Ws.
Features
LF444CMX features: (1)1/4 supply current of a LM148: 200 μA/Amplifier (max); (2)Low input bias current: 50 pA (max); (3)High gain bandwidth: 1 MHz; (4)High slew rate: 1 V/μs; (5)High input impedance: 1012W; (6)High gain VO = ±10V, RL = 10k: 50k (min).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LF444CMX |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
 |
LF444CMX/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
