Product Summary
The KTA1277Y is an epitaxial planar PNP transistor. The device is suitable for high voltage application, DC-DC converter and low power switching regulator.
Parametrics
KTA1277Y absolute maximum ratings: (1)collector base voltage, VCBO: -400V; (2)collector emitter voltage, VCEO: -400V; (3)emitter base voltage, VEBO: -7V; (4)collector current, IC: -0.5A; (5)emitter current, IE: 1A; (6) collector power dissipation, PC: 1W; (7)junction temperature, Tj: 150℃; (8)storage temeprautre range, Tstg: -55 to 150℃.
Features
KTA1277Y features: (1)high breakdown voltage; (2)low collector saturation voltage; (3)high speed switching.

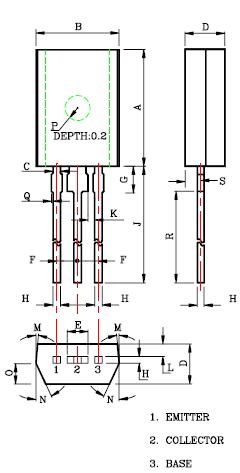

Diagrams
 |
