Product Summary
The KTA1023 is an epitaxial planar PNP transistor. The device is suitable for high voltage application.
Parametrics
KTA1023 absolute maximum ratings: (1)collector base voltage, VCBO: -120V; (2)collector-emitter voltage, VCEO: -120V; (3)emitter base voltage, VEBO: -5V; (4)collector current, IC: -800mA; (5)emitter current, IE: 800mA; (6)collector power dissipation, PC: 1W; (7)junction temeprature, Tj: 150℃; (8)storage temeprature range, Tstg: -55 to 150℃.
Features
KTA1023 features: (1)complementary to KTC1027.

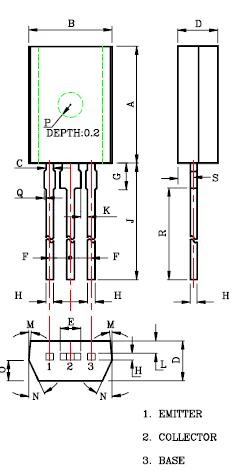

Diagrams
 |
