Product Summary

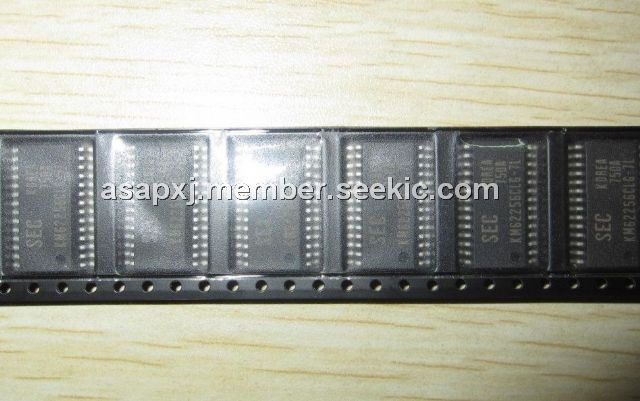

The KM62256CLG-7L is a 32Kx8 bit Low power CMOS Static RAM. The KM62256CLG-7L is fabricated by SAMSUNG’s advanced CMOS process technology. The KM62256CLG-7L supports various operating temperature ranges and has various package types for user flexibility of system design. The KM62256CLG-7L also supports low data retention voltage for battery back-up operation with low data retention current.
Parametrics
KM62256CLG-7L absolute maximum ratings: (1)Voltage on any pin relative to Vss: -0.5V to VCC+0.5V; (2)Voltage on Vcc supply relative to Vss: -0.5V to 7.0V; (3)Power Dissipation: 1.0W; (4)Storage temperature: -65℃ to 150℃; (5)Operating Temperature: 0℃ to 70℃; (6)Soldering temperature and time(10 sec): 260℃.
Features
KM62256CLG-7L features: (1)Process Technology : 0.7 CMOS; (2)Organization: 32Kx8; (3)Power Supply Voltage : Single 5V 10%; (4)Low Data Retention Voltage : 2V(Min); (5)Three state output and TTL Compatible; (6)Package Type : JEDEC Standard 28-DIP, 28-SOP, 28-TSOP I -Forward/Reverse.

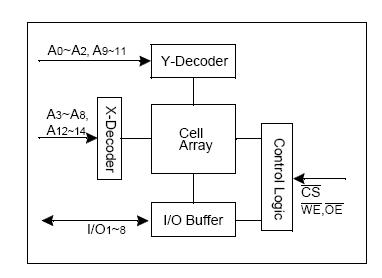

Diagrams
 |
