IRS2113STRPBF

low side driver, 16-SOIC, 10 V to 20 V, IRS2113STRPBF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.79~0.79 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.79~0.79

PartNumber:: IRS2113STRPBF

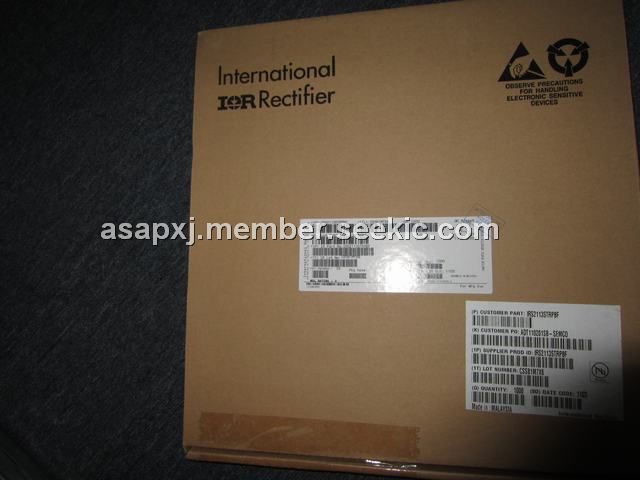

Brand:: International Rectifier - IR | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-13

From Other Seller

Part Number:IRS2113STRPBF
US $0.79 - 0.79
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

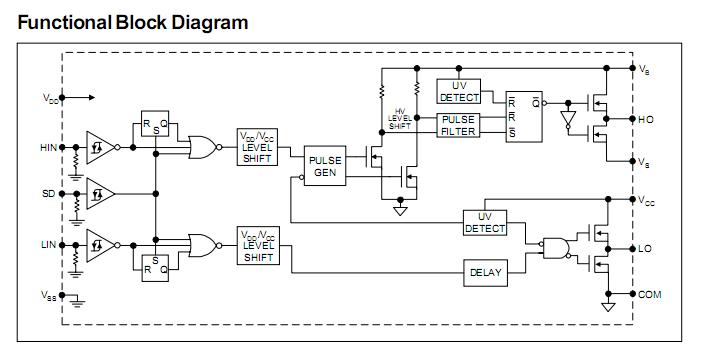

The IRS2113STRPBF is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs of the IRS2113STRPBF are compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction.

Parametrics

IRS2113STRPBF absolute maximum ratings: (1)High side floating supply voltage: -0.3V to 620V; (2)High side floating supply offset voltage: VB-20V to VB+0.3V; (3)High side floating output voltage: VS-0.3V to VB+0.3V ; (4)Low side fixed supply voltage: -0.3V to 20V; (5)Low side output voltage: -0.3V to VCC+0.3V ; (6)Logic supply voltage: -0.3V to VSS+20V; (7)Logic supply offset voltage: VCC-20V to VCC+0.3V; (8)Logic input voltage (HIN, LIN, & SD): VSS-0.3V to VDD+0.3V; (9)Allowable offset supply voltage transient: 50V/ns; (10)Junction temperature: 150℃ ; (11)Storage temperature: -55℃ to +150℃ ; (12)Lead temperature (soldering, 10 seconds): 300℃.

Features

IRS2113STRPBF features: (1)Floating channel designed for bootstrap operation; (2)Fully operational to +500 V or +600 V; (3)Tolerant to negative transient voltage, dV/dt immune; (4)Gate drive supply range from 10 V to 20 V; (5)Undervoltage lockout for both channels; (6)3.3 V logic compatible; (7)Separate logic supply range from 3.3 V to 20 V; (8)Logic and power ground ±5V offset; (9)CMOS Schmitt-triggered inputs with pull-down; (10)Cycle by cycle edge-triggered shutdown logic; (11)Matched propagation delay for both channels; (12)Outputs in phase with inputs.
