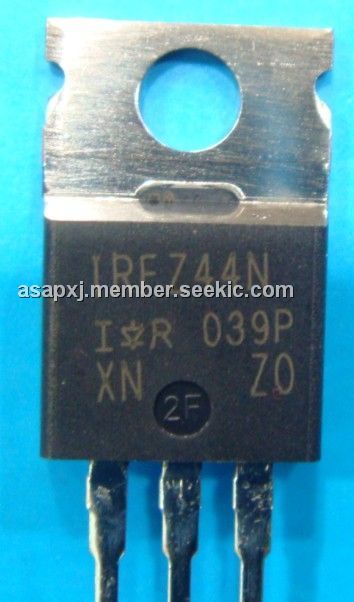

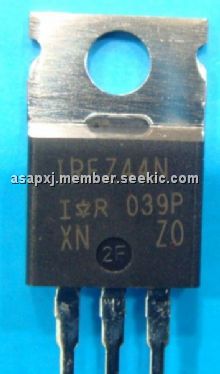

IRFZ44N

Power MOSFET, TO, 49 A, Ultra Low On-Resistance, Fully Avalanche Rated

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: IRFZ44N

Brand:: International Rectifier - IR | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-23

From Other Seller

Part Number:IRFZ44N
US $0.10 - 1.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
AT45DB161B-TU

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRFZ44N Advanced HEXFET Power MOSFET from International Rectifier utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized the IRFZ44N design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

IRFZ44N absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 49 A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 35 A; (3)IDM Pulsed Drain Current: 160 A; (4)PD @TC = 25℃ Power Dissipation: 94 W; (5)Linear Derating Factor: 0.63 W/℃; (6)Gate-to-Source Voltage: ± 20 V; (7)Avalanche Current: 25 A; (8)Repetitive Avalanche Energy: 9.4 mJ; (9)Peak Diode Recovery dv/dt: 5.0 V/ns; (10)Operating Junction and Storage Temperature Range: -55 to + 175 ℃.

Features

IRFZ44N features: (1)Advanced Process Technology; (2)Ultra Low On-Resistance; (3)Dynamic dv/dt Rating; (4)175℃ Operating Temperature; (5)Fast Switching; (6)Fully Avalanche Rated.
