Product Summary
The IRFL210TR is a Power MOSFET. It provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The SOT-223 package of the IRFL210TR is designed for surface-mounting using vapor phase, infrared, or wave soldering techniques. The IRFL210TR’ unique package design allows for easy automatic pick-and-place as with other SOT or SOIC packages but has the added advantage of improved thermal performace due to an enlarged tab for heatsinking. Power dissipation of greater than 1.25 W is possible in a typical surface mount application.
Parametrics
IRFL210TR absolute maximum ratings: (1)Drain-Source Voltage VDS: 200V; (2)Gate-Source Voltage VGS: ±20V; (3)Continuous Drain Current ID: 0.96A; (4)Pulsed Drain Current IDM: 7.7A; (5)Linear Derating Factor: 0.025W/℃; (6)Linear Derating Factor (PCB Mount): 0.017W/℃; (7)Single Pulse Avalanche Energyb EAS: 50 mJ; (8)Repetitive Avalanche Currenta IAR: 0.96 A; (9)Repetitive Avalanche Energya EAR: 0.31 mJ.
Features

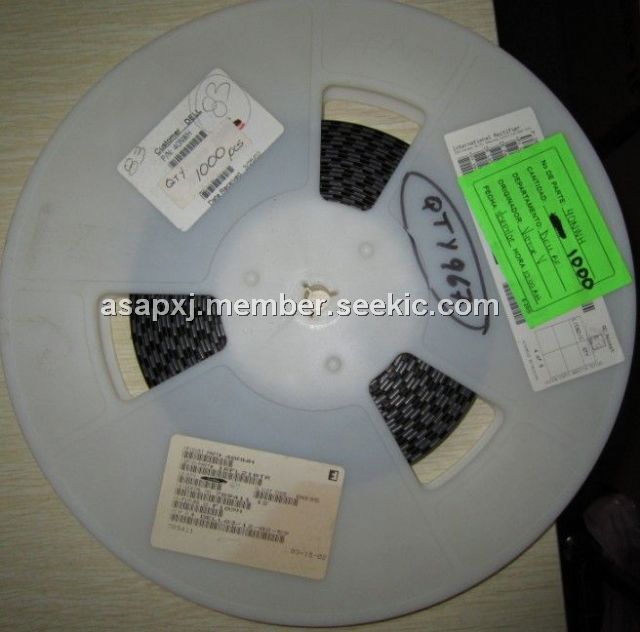

IRFL210TR features: (1)Surface Mount; (2)Available in Tape and Reel; (3)Dynamic dV/dt Rating; (4)Repetitive Avalanche Rated; (5)Fast Switching; (6)Ease of Paralleling; (7)Simple Drive Requirements; (8)Lead (Pb)-free Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRFL210TR |
Vishay/Siliconix |
MOSFET N-Chan 200V 0.96 Amp |
Data Sheet |
|
|
||||||||||||
|
IRFL210TRPBF |
Vishay/Siliconix |
MOSFET N-Chan 200V 0.96 Amp |
Data Sheet |
|
|
||||||||||||
