IRF6775MTRPBF

digital audio MOSFET, 150V, 4.9A, QFN, 3.0Ω, IRF6775MTRPBF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.14~1.14 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.14~1.14

PartNumber:: IRF6775MTRPBF

Brand:: International Rectifier - IR | Pack: QFN | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-13

From Other Seller

Part Number:IRF6775MTRPBF
US $1.14 - 1.14
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRF6775MTRPBF is a digital audio MOSFET. It is specifically designed for Class-D audio amplifier applications. The IRF6775MTRPBF utilizes the latest processing techniques to achieve low on-resistance per silicon area. Furthermore, gate charge, body-diode reverse recovery and internal gate resistance are optimized to improve key Class-D audio amplifier performance factors such as efficiency, THD, and EMI. The IRF6775MTRPBF utilizes DirectFETTM packaging technology.

Parametrics

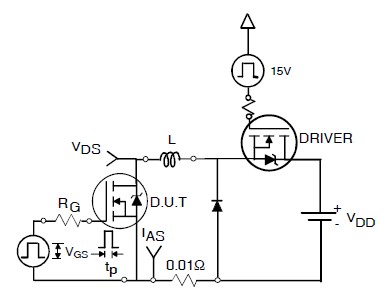

IRF6775MTRPBF absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 28 A; (2)ID @ TA = 25℃ Continuous Drain Current, VGS @ 10V: 4.9 A; (3)IDM Pulsed Drain Current: 39 A; (4)PD @TC = 25℃ Power Dissipation: 89 W; (5)Linear Derating Factor: 0.022 W/℃; (6)VGS Gate-to-Source Voltage: ±20 V; (7)EAS Single Pulse Avalanche Energy: 33 mJ; (8)IAR Avalanche Current: 5.6 A; (9)TJ TSTG Operating Junction and Storage Temperature Range: -40 to + 150 ℃.

Features

IRF6775MTRPBF features: (1)Latest MOSFET Silicon technology; (2)Key parameters optimized for Class-D audio amplifier applications; (3)Low RDS(on) for improved efficiency; (4)Low Qg for better THD and improved efficiency; (5)Low Qrr for better THD and lower EMI; (6)Low package stray inductance for reduced ringing and lower EMI; (7)Can deliver up to 250W per channel into 4Ω Load in Half-Bridge Configuration Amplifier; (8)Dual sided cooling compatible; (9)Compatible with existing surface mount technologies; (10)RoHS compliant containing no lead or bromide; (11)Lead-Free (Qualified up to 260℃ Reflow).
