ICE2HS01G

Resonant Mode Controller, 20-pin DSO, 30kHz to 1MHz, ICE2HS01G

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.90~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.90~2.00

PartNumber:: ICE2HS01G

Brand:: Infineon Technologies AG - Infineon | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-03

From Other Seller

Part Number:ICE2HS01G
US $1.90 - 2.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

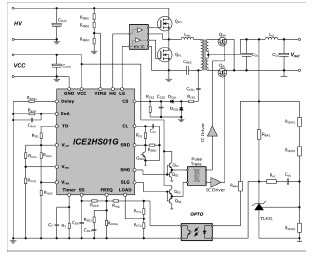

The ICE2HS01G is a High Performance Resonant Mode Controller for Half-bridge LLC Resonant Converter. The ICE2HS01G is used in PC power supplies, Server power supplies, Telecom power supplies, Flat panel TV and Flat panel display power supplies, AC-DC adapter.

Parametrics

ICE2HS01G absolute maximum ratings: (1)VCC Supply Voltage VVCC: -0.3 to 18 V; (2)VHG Voltage VHG: -0.3 to 18 V; (3)VLG Voltage VLG: -0.3 to 18 V; (4)FREQ Current IFREQ: 0 to 3.5 mA; (5)Vref Current IVR: 0 to 3 mA; (6)SRD Current ISRD: 0 to 2.5 mA; (7)Junction Temperature Tj: -40 to 125 ℃; (8)Storage Temperature TS: -55 to 150 ℃.

Features

ICE2HS01G features: (1)Resonant mode controller for Half-bridge LLC resonant converter with synchronous rectification drives; (2)20-pin DSO package; (3)30kHz to 1MHz switching frequency; (4)Adjustable minimum switching frequency with high accuracy; (5)50% duty cycle for both primary and secondary gate drives; (6)Adjustable dead time with high accuracy; (7)Driving signal for synchronous rectification which support full operation of Half-bridge LLC resonant converter; (8)Internal and External disable function for synchronous rectification; (9)Mains input under votlage protection with adjustable hysteresis; (10)Three levels of overcurrent protection for enhanced dynamic performance; (11)Open-loop/over load protection with adjustable blanking time and restart time; (12)Adjustable over-temperature protection with latch-off; (13)External latch-off enable pin.
