Product Summary

The HX5014NL is a 1000BASE-T magnetics module. It is designed to Support 1:1 Turns Ratio Transceivers.

Parametrics

HX5014NL absolute maximum ratings: (1)Insertion Loss (dB MAX): 1.4 dB at 1-100MHz; (2)Return Loss (dB MIN): -16 dB at 1-30MHz, -14.4 dB at 40MHz, -13.1 dB at 50MHz, -12 dB at 60-80 MHz; (3)Differential to Common Mode Rejection (dB TYP): -45 dB at 30 MHz, -40 dB at 50 MHz, -35 dB at 100 MHz; (4)Crosstalk (dB MIN): -43.5 dB at 30MHz, -37.5 dB at 60MHz, -33 dB at 100MHz; (5)Hipot (VRMS MIN): 1500 V.

Features

HX5014NL features: (1)RoHS peak reflow temperature rating 245℃; (2)Meets IEEE 802.3 specification.

Diagrams

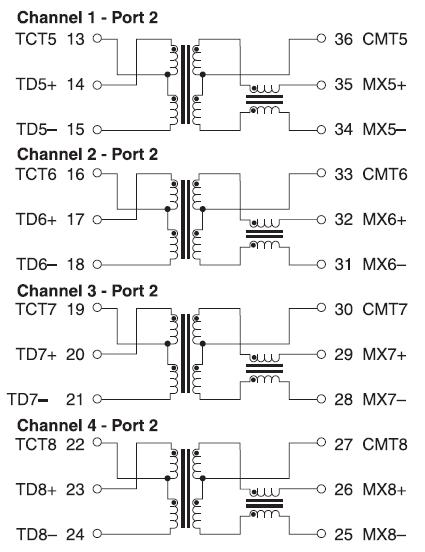

HX5014NL block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HX5014NL
HX5014NL
Pulse
Transformers Audio & Signal Dual Gigabit
Data Sheet
0-1: $7.69
1-10: $6.64
10-100: $5.56
100-500: $5.11
