Product Summary

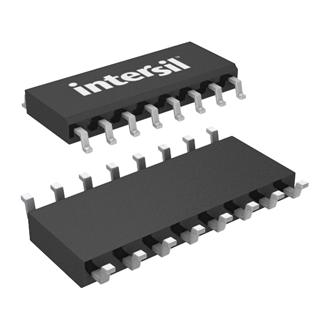

The HIP6302CB is a multi-phase PWM control IC together with its companion gate drivers, the HIP6601, HIP6602 or HIP6603 and Intersil MOSFETs provides a precision voltage regulation system for advanced microprocessors. The HIP6302CB is a marked departure from earlier single phase converter configurations previously employed to satisfy the ever increasing current demands of modern microprocessors. Multi-phase convertors, by distributing the power and load current results in smaller and lower cost transistors with fewer input and output capacitors.
Parametrics
HIP6302CB absolute maximum ratings: (1)Supply Voltage, VCC: +7V; (2)Input, Output, or I/O Voltage: GND -0.3V to VCC + 0.3V; (3)ESD Classification: Class TBD.
Features
HIP6302CB features: (1)Multi-Phase Power Conversion; (2)Precision Channel Current Sharing, Loss Less Current Sampling - Uses rDS(ON); (3)Precision CORE Voltage Regulation, ±1% System Accuracy Over Temperature; (4)Microprocessor Voltage Identification Input, 5-Bit VID Input; 1.100V to 1.850V in 25mV Steps; Programmable Droop Voltage; (5)Fast Transient Recovery Time; (6)Over Current Protection; (7)High Ripple Frequency, (Channel Frequency) Times; (8)Number Channels: 100kHz to 3MHz.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HIP6302CB |
|
IC REG CTRLR BUCK PWM 16-SOIC |
Data Sheet |
Negotiable |
|
||||||||
 |
HIP6302CB-T |
Intersil |
Switching Converters, Regulators & Controllers MPU CORE Volt Reg |
Data Sheet |
Negotiable |
|
||||||||
|
HIP6302CBZ |
Intersil |
Current Mode PWM Controllers VER OF HIP6302CB |
Data Sheet |
|
|
||||||||
|
HIP6302CBZ-T |
Intersil |
Current Mode PWM Controllers VER OF HIP6302CB-T |
Data Sheet |
|
|
||||||||
|
HIP6302CBZA |
|
IC REG CTRLR BUCK PWM 16-SOIC |
Data Sheet |
|
|
||||||||
|
HIP6302CBZA-T |
|
IC REG CTRLR BUCK PWM 16-SOIC |
Data Sheet |
|
|
||||||||
