Product Summary

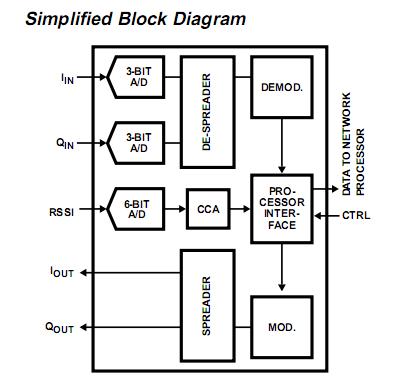

The HFA3860BIV96 is a Direct Sequence Spread Spectrum Baseband Processor. It is part of the PRISM 2.4GHz radio chipset, and contains all the functions necessary for a full or half duplex packet baseband transceiver. The HFA3860BIV96 has on-board A/Ds for analog I and Q inputs, for which the HFA3724/6 IF QMODEM is recommended. The applications of the HFA3860BIV96 include Enterprise WLAN Systems, Systems Targeting IEEE 802.11 Standard, DSSS PCMCIA Wireless Transceiver, Spread Spectrum WLAN RF Modems, TDMA Packet Protocol Radios, Part 15 Compliant Radio Links, Portable Bar Code Scanners/POS Terminal, Portable PDA/Notebook Computer, Wireless Digital Audio, Wireless Digital Video, PCN/Wireless PBX.

Parametrics

HFA3860BIV96 absolute maximum ratings: (1)Supply Voltage:7.0V; (2)Input, Output or I/O Voltage:GND -0.5V to VCC +0.5V; (3)Operating Voltage Range:+2.70V to +3.60V; (4)Operating Temperature Range:-40℃ to 85℃; (5)Thermal Resistance (Typical):80℃/W; (6)Maximum Storage Temperature Range:-65℃ to 150℃; (7)Maximum Junction Temperature:150℃; (8)Maximum Lead Temperature (Soldering 10s):300℃(Lead Tips Only).

Features

HFA3860BIV96 features: (1)Complete DSSS Baseband Processor; (2)Processing Gain:≥10dB; (3)Programmable Data Rate:1, 2, 5.5, and 11MBPS; (4)Ultra Small Package:7 x 7 x 1mm; (5)Single Supply Operation (44MHz Max):2.7V to 3.6V; (6)Modulation Methods . .DBPSK, DQPSK, CCK, and MBOK; (7)Supports Full or Half Duplex Operations; (8)On-Chip A/D Converters for I/Q Data (3-Bit, 22 MSPS) and RSSI (6-Bit); (9)Backwards Compatible with HFA3824A, HFA3860A; (10)Supports Dual Antenna Diversity.
