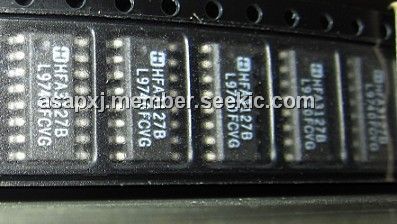

HFA3127B96

Transistor Array, 16-SOIC, 50V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~2.00

PartNumber:: HFA3127B96

Brand:: Harris Corporation - Harris | Pack: SOP | D/C: 97+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-26

From Other Seller

Part Number:HFA3127B96
US $0.10 - 2.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HFA3127B96 is an Ultra High Frequency Transistor Array. It is fabricated from Intersil Corporation’s complementary bipolar UHF-1 process. The HFA3127B96 consists of five dielectrically isolated transistors on a common monolithic substrate. Both types exhibit low noise (3.5dB), making them ideal for high frequency amplifier and mixer applications. The device provides close electrical and thermal matching of the five transistors. The applications of the HFA3127B96 include VHF/UHF Amplifiers, VHF/UHF Mixers, IF Converters, Synchronous Detectors.

Parametrics

HFA3127B96 absolute maximum ratings: (1)Collector to Emitter Voltage (Open Base):8V; (2)Collector to Base Voltage (Open Emitter):12V; (3)Emitter to Base Voltage (Reverse Bias):5.5V; (4)Collector Current (100% Duty Cycle):18.5mA at TJ = 150℃, 34mA at TJ = 125℃, 37mA at TJ = 110℃; (5)Peak Collector Current (Any Condition):65mA; (6)Operating temperature range:-55℃ to +125℃; (7)Maximum Power Dissipation (Any One Transistor):0.15W; (8)Maximum Junction Temperature (Die):175℃; (9)Maximum Junction Temperature (Plastic Package):150℃; (10)Maximum Storage Temperature Range:-65℃ to 150℃; (11)Maximum Lead Temperature (Soldering 10s):300℃(SOIC - Lead Tips Only).

Features

HFA3127B96 features: (1)NPN Transistor (fT):8GHz; (2)NPN Current Gain (hFE):130; (3)NPN Early Voltage (VA):50V; (4)PNP Transistor (fT):5.5GHz; (5)PNP Current Gain (hFE):60; (6)PNP Early Voltage (VA):20V; (7)Noise Figure (50Ω) at 1.0GHz:3.5dB; (8)Collector to Collector Leakage:<1pA; (9)Complete Isolation Between Transistors; (10)Pin Compatible with Industry Standard 3XXX Series Arrays; (11)Pb-Free Plus Anneal Available (RoHS Compliant).
