Product Summary
The HEF4001BT is a Quad 2-input NOR gate. The outputs are fully buffered for the highest noise immunity and pattern insensitivity to output impedance. The HEF4001BT operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input. The HEF4001BT is suitable for use over both the industrial (-40℃ to +85℃) and automotive (-40℃ to +125℃) temperature ranges.
Parametrics
HEF4001BT absolute maximum ratings: (1)supply voltage:-0.5V to +18 V; (2)input clamping current:±10 mA; (3)input voltage:-0.5V to VDD + 0.5 V; (4)output clamping current:±10 mA; (5)input/output current:±10 mA; (6)supply current:50 mA; (7)storage temperature:-65℃ to +150℃; (8)ambient temperature:-40℃ to +125℃; (9)total power dissipation Tamb = -40℃ to + 125℃:500 mW; (10)power dissipation per output:100 mW.
Features
HEF4001BT features: (1)Fully static operation; (2)5 V, 10 V, and 15 V parametric ratings; (3)Standardized symmetrical output characteristics; (4)Operates across the automotive temperature range from -40℃ to +125℃; (5)Complies with JEDEC standard JESD 13-B; (6)Inputs and outputs are protected against electrostatic effects.

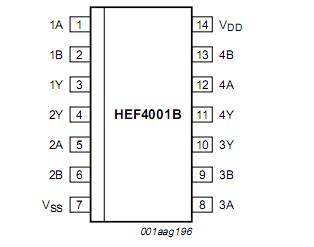

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HEF4001BT,652 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) QUAD 2-IN NOR GATE |
Data Sheet |
|
|
||||||||||||
|
HEF4001BT,653 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) QUADRUPLE 2-INPUT NOR GATE |
Data Sheet |
|
|
||||||||||||
