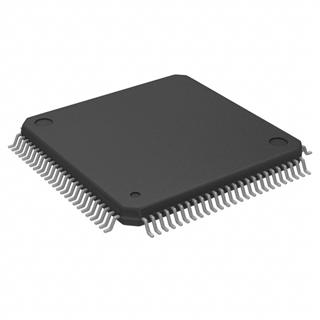

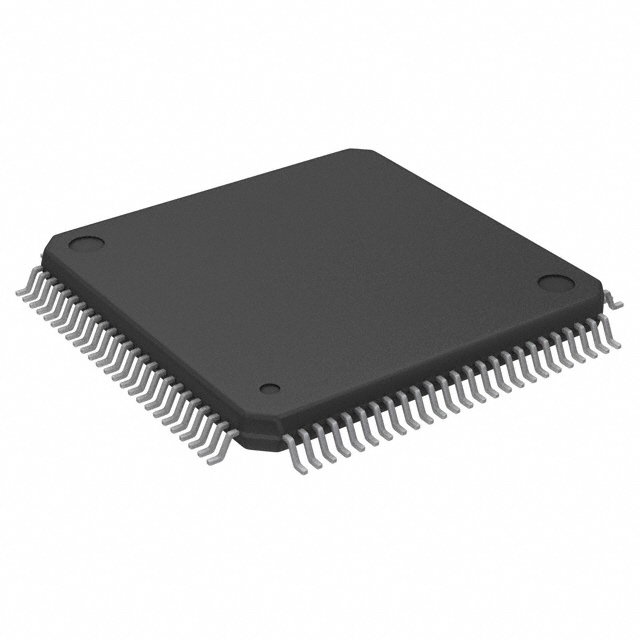

HD64F3048F16

HD64F3048F16V, 100QFP, 128KB, microcontroller, 8MHz, 4.5 V ~ 5.5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.24~6.24 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.24~6.24

PartNumber:: HD64F3048F16

Brand:: Anachip - Diodes | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:HD64F3048F16
US $6.24 - 6.24
BD9774HFP

US $0.70 - 1.20 / Piece
(0) Remove
M27C4001-10F1

US $2.00 - 3.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

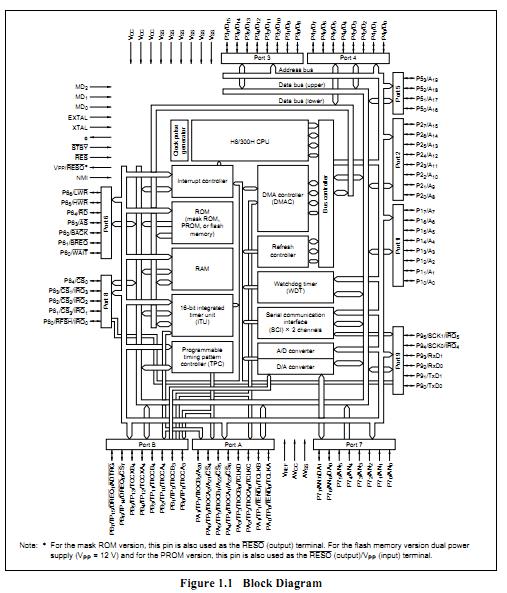

The HD64F3048F16V is a microcontroller (MCU) that integrates system supporting functions together with an H8/300H CPU core having an original Renesas Technology architecture. TheHD64F3048F16V CPU has a 32-bit internal architecture with sixteen 16-bit general registers, and a concise, optimized instruction set designed for speed. The HD64F3048F16V can address a 16-Mbyte linear address space. Its instruction set is upward-compatible at the object-code level with the H8/300 CPU, enabling easy porting of software from the H8/300 Series.

Parametrics

HD64F3048F16V absolute maximum ratings: (1)Input high voltage, VIH: 2.2 to VCC + 0.3 V; (2)Input low voltage, VIL: -0.3 to 0.8 V; (3)Output high voltage, VPH: 2.4V min; (4)Output low voltage, VOL: 0.45 V max; (5)Input leakage current, ILI: 2 μA; (6)VCC current, Read ICC: 40mA typ, 80 mA max; Program ICC: 40mA typ, 80 mA max; Erase ICC: 40mA typ,80 mA max; (7)VPP current Read IPP: 200 μA max.

Features

HD64F3048F16V features: (1)Upward compatibility with H8/300 CPU; (2)Can execute H8/300 Series object programs; (3)General-register architecture; (4)Sixteen 16-bit general registers (also usable as sixteen 8bit registers or eight 32-bit registers); (5)8/16/32-bit data transfer and arithmetic and logic instructions; (6)Multiply and divide instructions; (7)Powerful bit-manipulation instructions; (8)Register direct; (9)Register indirect; (10)Register indirect with displacement; (11)Absolute address; (12)Immediate; (13)Program-counter relative; (14)Memory indirect.
