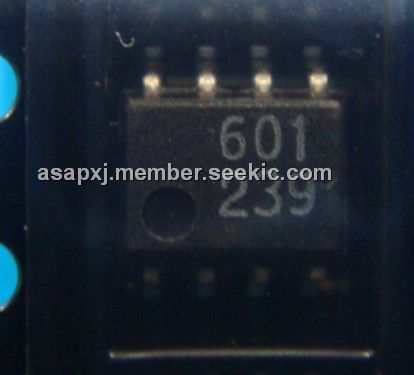

HCPL-0601

optically coupled gate, SOP, 7V, 20 mA, High speed, Low input current capability

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: HCPL-0601

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-23

From Other Seller

Part Number:HCPL-0601
US $0.10 - 1.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
MJ16018

US $1.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HCPL-0601 is an optically coupled gate that combines a GaAsP light emitting diode and an integrated high gain photo detector. An enable input allows the detector to be strobed. The output of the HCPL-0601 is an open collector Schottkyclamped transistor. The internal shield provides a guaranteed common mode transient immunity specification up to 15,000 V/μs at Vcm=1000V. The applications of the HCPL-0601 include Isolated line receiver, Computer-peripheral interfaces, Microprocessor system interfaces, Digital isolation for A/D, D/A conversion, Switching power supply, Instrument input/output isolation, Ground loop elimination, Pulse transformer replacement, Power transistor isolation in motor drives and Isolation of high speed logic systems.

Parametrics

HCPL-0601 absolute maximum ratings: (1)Storage Temperature, TS: -55 to 125℃; (2)Operating Temperature, TA: -40 to 85℃; (3)Average Forward Input Current, IF: 20 mA; (4)Reverse Input Voltage, VR: 5V; (5)Input Power Dissipation, PI: 40mW; (6)Supply Voltage (1 Minute Maximum), VCC: 7V; (7)Enable Input Voltage, VE: VCC + 0.5 V; (8)Enable Input Current, IE: 5 mA; (9)Output Collector Current, IO: 50 mA; (10)Output Collector Voltage, VO: 7 V; (11)Output Collector Power, PO: 85 mW; (12)Lead Solder Temperature TLS: 260℃ for 10 sec.

Features

HCPL-0601 features: (1)15 kV/μs minimum Common Mode Rejection (CMR) at VCM = 1KV; (2)High speed: 10 MBd typical; (3)LSTTL/TTL compatible; (4)Low input current capability: 5 mA; (5)Guaranteed ac and dc performance over temper ature: -40 to +85℃; (6)Available in 8-Pin DIP, SOIC-8, widebody packages; (7)Strobable output (single channel products only); (8)Safety approval: UL recognized, Vrms for 1 minute per UL1577 CSA approved, IEC/EN/DIN EN 60747-5-2 approved; (9)MIL-PRF-38534 hermetic version available.
