HCF4518M013TR

dual BCD up counter, SOP, 1MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: HCF4518M013TR

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-26

From Other Seller

Part Number:HCF4518M013TR
US $0.10 - 1.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

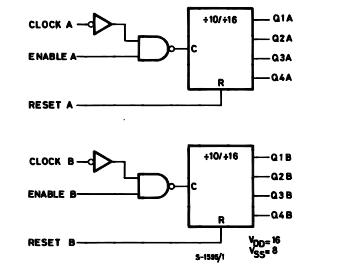

The HCF4518M013TR is a dual BCD up counter. The device is fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages. The HCF4518M013TR consists of two identical, internal 4 stage counters. The counter stages are D-type Flip-Flops having interchangeable Clock and Enable lines for incrementing on either the positive-going or negative going transitions. The HCF4518M013TR can be cascaded in the ripple mode by connecting Q4 to the enable input of the subsequent counter while the clock input of the latter is held low.

Parametrics

HCF4518M013TR absolute maximum ratings: (1)Supply Voltage:-0.5V to +22V; (2)DC Input Voltage:-0.5V to VDD + 0.5V; (3)DC Input Current:± 10mA; (4)Power Dissipation per Package:200mW; (5)Power Dissipation per Output Transistor:100mW; (6)Operating Temperature:-55℃ to +125℃; (7)Storage Temperature:-65℃ to +150℃.

Features

HCF4518M013TR features: (1)medium speed operation :6MHz (Typ.) at 10V; (2)positive -or negative- edge triggering; (3)synchronous internal carry propagation; (4)quiescent current specif. up to 20V ; (5)5V, 10V and 15V parametric ratings; (6)input leakage current II= 100nA (max) at vdd = 18V TA = 25℃; (7)100% tested for quiescent current ; (8)meets all requirements of jedec jesd13b "standard specifications for description of b series cmos devices".
