Product Summary
The HC1-1R0-R is a high current power inductor. The applications of it are Next generation microprocessors, High current DC-DC converters, Computers.
Parametrics
HC1-1R0-R general specifications: (1)Storage temperature range: -40℃ to +125℃; (2)Operating ambient temperature range: -40℃ to +85℃(range is application specific); (3)Infrared reflow temperature: +260℃ for 10 seconds maximum; (4)rated inductance:1.0uH; (5)OCL±15%:1.12uH; (6)Irms:28.01Amperes Approx.; (7)Isat:25.4Amperes Approx.; (8)DCR max. @20℃:0.00138Ω; (9)volt-uSec:5.49Vus.
Features
HC1-1R0-R features: (1)Designed for high current, low voltage applications; (2)Low DCR, high efficiency; (3)Foil construction for higher frequency circuit designs; (4)Suited for IR and vapor reflow solder; (5)Frequency range 1kHz to 1MHz.

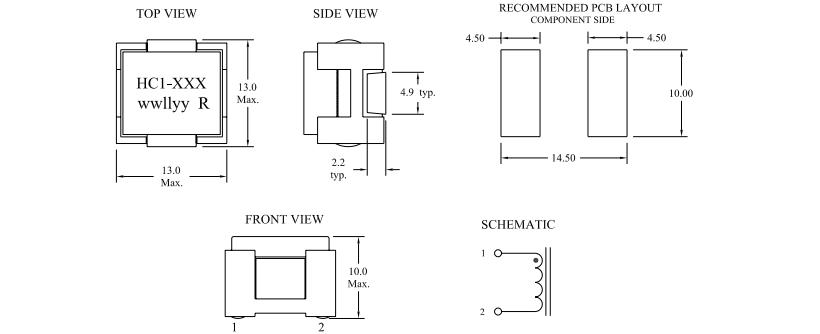

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HC1-1R0-R |
Cooper Bussmann |
Power Inductors 1.0uH 25.4A 1.23mOhms |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
|
HC1-100-R |
Cooper Bussmann |
Power Inductors 10uH 5.3A 5.7mOhms |
Data Sheet |
|
|
||||||||||||||
|
HC1-1R0-R |
Cooper Bussmann |
Power Inductors 1.0uH 25.4A 1.23mOhms |
Data Sheet |
|
|
||||||||||||||
|
HC1-2R3-R |
Cooper Bussmann |
Power Inductors 2.3uH 16.7A 2.0mOhms |
Data Sheet |
|
|
||||||||||||||
 |
HC1-H-AC115V |
Panasonic Electric Works |
General Purpose / Industrial Relays 1 Form C 115VAC |
Data Sheet |
Negotiable |
|
||||||||||||||
|
HC1-H-AC115V-G |
|
RELAY GEN PURPOSE SPDT 10A 115V |
Data Sheet |
Negotiable |
|
||||||||||||||
|
HC1-H-AC120V-F |
Panasonic Electric Works |
General Purpose / Industrial Relays 120V 10A SPDT PLUG IN |
Data Sheet |
|
|
||||||||||||||
