Product Summary

The H1302NLT is a 10/100BASE-T single port surface mount magnetic With Various Turns Ratios.

Parametrics

H1302NLT absolute maximum ratings: (1)Turns Ratio: 1:1;(2)Insertion Loss 100 kHz-100 MHz (dB MAX): 0.1 MHz:-1.1;(3)Return Loss (dB TYP): 30 MHz: -16; 60 MHz:-10; 80 MHz: -10;(4)Hipot (Vrms MIN): 1500.

Features

H1302NLT features: (1)RoHS reflow temperature rating 245℃; (2)Meets IEEE 802.3 specification; (3)Compact footprint for use in the most space-restrictive applications.

Diagrams

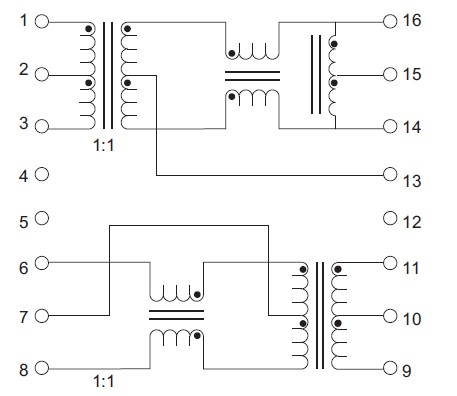

H1302NLT circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
H1302NLT
H1302NLT
Pulse
Transformers Audio & Signal 10/100 SGL XFMR
Data Sheet
0-355: $1.64
355-500: $1.58
500-600: $1.58
600-1000: $1.53
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
H1302NLT
H1302NLT
Pulse
Transformers Audio & Signal 10/100 SGL XFMR
Data Sheet
0-355: $1.64
355-500: $1.58
500-600: $1.58
600-1000: $1.53
