Product Summary

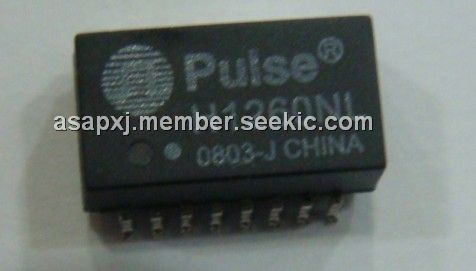

The H1260NL is a 10/100 base-t transformer module with poe option and 1:1 turns ratios.

Parametrics

H1260NL Specifications: (1)Insertion Loss(dB MAX) 0.1MHz: -1.1; 100 MHz: -1.1; (2)Return Loss(Z out=100 Ω±15%): 30 MHz: -16; 60 MHz: -10; 80 MHz: -10; (3)DCrosstalk(adjacent channels dB MIN): 30 MHz: -35; 60 MHz: -30; 100 MHz: -30; (4)Hipot (Vrms MIN): 1500.

Features

H1260NL features: (1)RoHS peak reflow temperature rating 245℃; (2)Meets IEEE 802.3 specification; (3)Compact footprint.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
H1260NL
H1260NL
Pulse
Transformers Audio & Signal XFMR SIM TO H1102
Data Sheet
0-1: $2.52
1-10: $1.68
10-100: $1.36
100-500: $1.21
