Product Summary

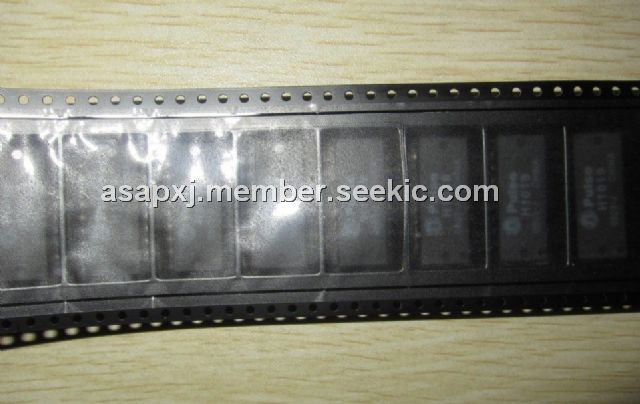

The H1019T is a pulse transformer audio, signal XFMR transformer.
Parametrics
H1019T absolute maximum ratings: (1)Electrical Specifications @ 25℃ Operating Temperature: 0℃ to 70℃; (2)Insertion Loss(dBMAX): -1.0MHz; (3)Return Loss(dB MIN @100Ω): 1-30MHz:-20; 40MHz: -18; 50MHz:-18; 60-80MHz:-14; (4)Differential to Common Mode Rejection (dB MIN):30MHz:-45; 60MHz:-40; 100MHz:-35; (5)Crosstalk(dB TYP): 30MHz:-45; 60MHz:-40; 100MHz:-35; (6)Hipot (Vrms MIN): 1500.
Features
H1019T features: (1)Compatible with Broadcom, ICS, Intel, Kendin, Lucent, National Semiconductor and TDK Transceivers; (2)Meets all IEEE 802.3 and ANSI X3.263 standards including 350 μH OCL with 8 mA bias; (3)IC grade transfer-molded package withstands 235℃ IR reflow; (4) Patented Interlock Base construction for high reliability.

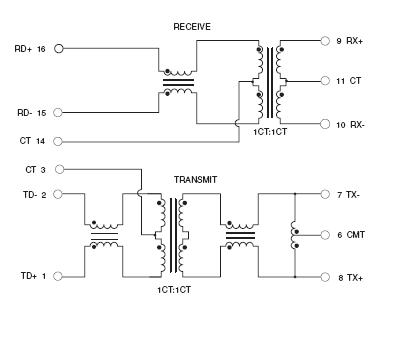

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 H1019T |
Pulse |
Transformers Audio & Signal XFMR |
Data Sheet |
Negotiable |
|
||||||||||||
