Product Summary

The FB2022 is a transmit/receiver filter.

Parametrics

FB2022 absolute maximum ratings: (1)CUT-OFF Frequency: 17 MHz ± 1.5MHz; (2)Voltage Isolation: 1500 Vrms.

Features

FB2022 features: (1)Designed for transmit/receiver filter; (2)Operating temperature range : 0℃ to +70℃; (3)Storage temperature range: -25℃ to +125℃.

Diagrams

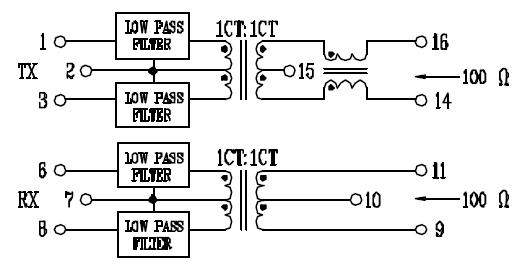

FB2022 Schematic diagram
