Product Summary

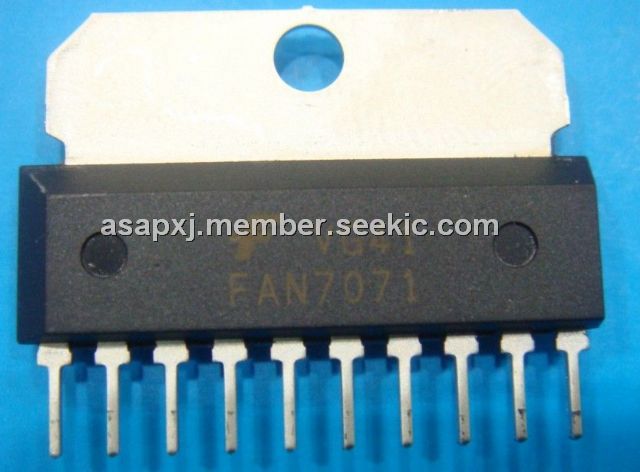

The FAN7071 is an IC to drive a landing correction coil of CRT monitor. The circuit is suitable for low power consumption design.
Parametrics
FAN7071 absolute maximum ratings: (1)Maximum Supply Voltage VCC: 13.5V; (2)Power Dissipation PD: 2W; (3)Operating Temperature TOPR: -20 ~ +75℃; (4)Storage Temperature TSTG: -55 ~ +150℃; (5)Thermal Resistance Rθja: 60℃/W.
Features
FAN7071 features: (1)Built in Power Amplifier (200mA) ; (2)Low Stanby Current CRT monitor; (3)Incorporating 2 Circuit.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FAN7071 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
FAN7071S |
Fairchild Semiconductor |
Special Purpose Amplifiers |
Data Sheet |
Negotiable |
|
||||
|
FAN7071TS |
Fairchild Semiconductor |
Power Factor Correction ICs Land Correction IC |
Data Sheet |
Negotiable |
|
||||
