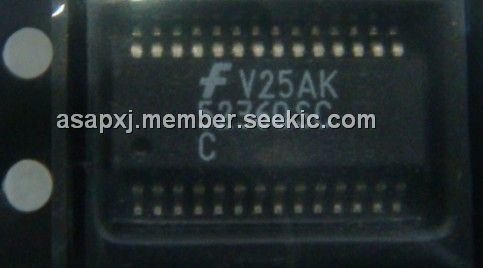

FAN5236QSCX

PWM controller, SOP, 6.5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: FAN5236QSCX

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-23

From Other Seller

Part Number:FAN5236QSCX
US $0.10 - 1.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The FAN5236QSCX is a PWM controller which provides high efficiency and regulation for two output voltages adjustable in the range from 0.9V to 5.5V that are required to power I/O, chip-sets, and memory banks in high-performance notebook computers, PDAs and Internet appliances. The applications of the FAN5236QSCX include: (1)DDR VDDQ and VTT voltage generation; (2)Mobile PC dual regulator; (3)Server DDR power; (4)Hand-Held PC power.

Parametrics

FAN5236QSCX absolute maxing ratings: (1)VCC Supply Voltage: max=6.5 V; (2)VIN: max=27 V; (3)BOOT, SW, ISNS, HDRV: max=33 V; (4)BOOTx to SWx: max=6.5 V; (5)All Other Pins: min=-0.3V, max=VCC+0.3 V; (6)Junction Temperature (TJ): min=-40 ℃, max=150 ℃; (7)Storage Temperature: min=-65 ℃, max=150 ℃; (8)Lead Soldering Temperature, 10 seconds: max=300 ℃.

Features

FAN5236QSCX features: (1)Lossless current sensing on low-side MOSFET or precision over-current using sense resistor; (2)VCC Under-voltage Lockout; (3)Converters can operate from +5V or 3.3V or Battery power input (5 to 24V); (4)Excellent dynamic response with Voltage Feed-Forward and Average Current Mode control; (5)Power-Good Signal; (6)Also supports DDR-II and HSTL; (7)Light load Hysteretic mode maximizes efficiency; (8)QSOP28, TSSOP28.
