Product Summary

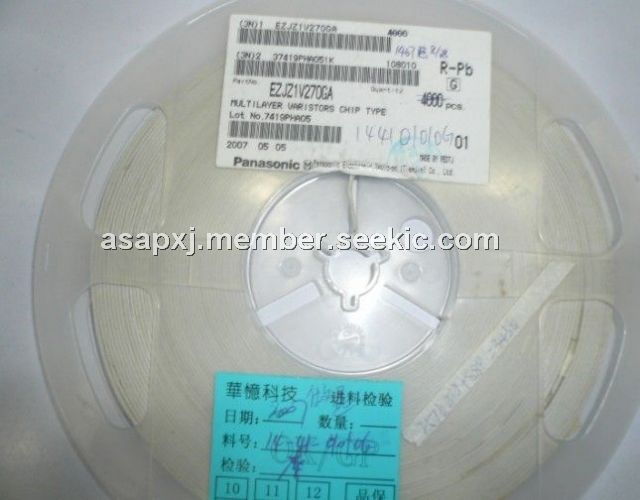

The EZJZ1V270GA is a Multilayer Varistor for ESD pulse, Burst pulse. The applications of it are PC mother board, Photoelectric senso, HDD, Proximity sensor, CD-ROM, Pressure switch, DSC, Flowmeter, Cellular teleptone, PHS, SSR, PDA, motor.

Parametrics

EZJZ1V270GA general specifications: (1)maximum allowable voltage: DC 16V; (2)varistor voltage @ 1mA:27V; (3)capacitance @ 1MHz:100pF max.; (4)maximum peak current @ 8/20us:20A.

Features

EZJZ1V270GA features: (1)Multilayer monolithic ceramic construction; (2)Excellent solderability and superior heat resistance; (3)Large surge current and energy capabilities in withstanding small size; (4)Multilayer varistor of Zinc oxide ceramic. suppresses the pulse noise(ESD, burst-noise) and protects the equipment from the transient surge; (5)This Varistor is suitable for high-speed signal line due to small capacitance.

Diagrams

EZJZ1V270GA circuit diagram
