Product Summary

The EXCCET102U is a Chip EMI Filter. The applications of it are Digital equipment such as PCs, word processors, printers, HDD, PPC, and communication equipment, Digital audio and video equipment, AC adapters, and switching power supplies, Electronic musical instruments, and other digital equipment.

Parametrics

EXCCET102U general specifications: (1)rated voltage:50Vdc; (2)capacitance:1000pF; (3)tolerance:±20%; (4)characteristics:YB; (5)rated current:2Adc; (6)DC resistance:50mΩ max.; (7)25dB attenuate frequency:65MHz to 200MHz; (8)15dB attenuate frequency:30MHz to 700MHz.

Features

EXCCET102U features: (1)Rated current (2 A max.); (2)Eight capacitance values in a wide range, related to the noise frequency; (3)Suitable for narrow pitch insertion; (4)Suitable for applications requiring thin design.

Diagrams

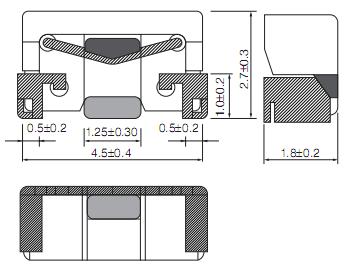

EXCCET102U package dimensions
