Product Summary

The ESD5Z5.0T1G is a transient voltage suppressor micro-packaged diode for ESD protection. The ESD5Z5.0T1G is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications.

Parametrics

ESD5Z5.0T1G absolute maximum ratings: (1)IEC 61000-4-2 (ESD)Air: ±30 kV; (2)IEC 61000-4-4 (EFT): 40 A; (3)ESD Voltage Per Human Body Model: 16 kV; (4)Total Power Dissipation on FR-5 Board (Note 1)@ TA = 25℃: 200 mW; (5)Junction and Storage Temperature Range TJ, Tstg: -55 to +150 ℃; (6)Lead Solder Temperature - Maximum (10 Second Duration)TL: 260 ℃.

Features

ESD5Z5.0T1G features: (1)Stand-off Voltage: 2.5 V -12 V; (2)Peak Power up to 240 Watts @ 8 x 20 s Pulse; (3)Low Leakage; (4)Response Time is Typically < 1 ns; (5)ESD Rating of Class 3 (> 16 kV)per Human Body Model; (6)IEC61000-4-2 Level 4 ESD Protection; (7)IEC61000-4-4 Level 4 EFT Protection; (8)Pb-Free Packages are Available.

Diagrams

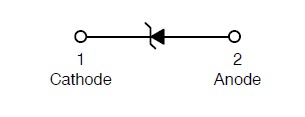

ESD5Z5.0T1G pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ESD5Z5.0T1G
ESD5Z5.0T1G

ON Semiconductor

TVS Diodes - Transient Voltage Suppressors SOD523 ESD DIODE

Data Sheet

0-1: $0.19
1-25: $0.13
25-100: $0.10
100-500: $0.05
