Product Summary

The DTC144EMT2L is a digital transistor.

Parametrics

DTC144EMT2L absolute maximum ratings: (1)Supply voltage: 50V; (2)Input voltage: -10~+40V; (3)Output current: 30A; (4)Power dissipation: 150mW; (5)Junction temperature: 150℃; (6)Storage temperature: -55~+150℃.

Features

DTC144EMT2L features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit); (2)The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects; (3)Only the on/off conditions need to be set for operation, making device design easy.

Diagrams

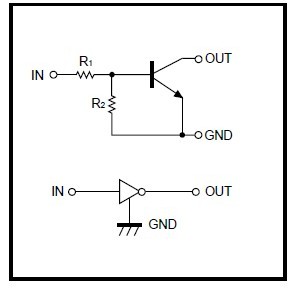

DTC144EMT2L Equivalent circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DTC144EMT2L
DTC144EMT2L
ROHM Semiconductor
Transistors Switching (Resistor Biased) NPN 50V 30MA
Data Sheet
0-1: $0.22
1-25: $0.15
25-100: $0.11
100-500: $0.06
