Product Summary
The DS26LS32ACM is a quad differential line receiver designed to meet the RS-423 and Federal Standards 1030 for balanced and unbalanced digital data transmission. The DS26LS32ACM has an input sensitivity of 200 mV over the input voltage range of ±7V . The DS26LS32ACM differs in function from the popular DS26LS32 and DS26LS33 in that input pull-up and pull down resistors are included which prevent output oscillation on unused channels.
Parametrics
DS26LS32ACM absolute maximum ratings: (1)Supply Voltage: 7V; (2)Common-Mode Range: ±25V; (3)Differential Input Voltage: ±25V; (4)Enable Voltage: 7V; (5)Output Sink Current: 50 mA; (6)Maximum Power Dissipation (Note 1) at 25℃; (7)Cavity Package: 1433 mW; (8)Molded Dip Package: 1362 mW; (9)SO Package DS26LS32ACM: 1051 mW; (10)Storage Temperature Range: -65℃ to +165℃; (11)Lead Temperature (Soldering, 4 seconds): 260℃.
Features
DS26LS32ACM features: (1)High differential or common-mode input voltage ranges of ±7V on the DS26LS32 and DS26LS32A; (2)±0.2V sensitivity over the input voltage range on the DS26LS32 and DS26LS32A; (3)DS26LS32 and DS26LS32A meet all requirements of RS-422 and RS-423; (4)6k minimum input impedance; (5)100 mV input hysteresis on the DS26LS32 and DS26LS32A; (6)Operation from a single 5V supply; (7)TRI-STATE outputs, with choice of complementary output enables for receiving directly onto a data bus.

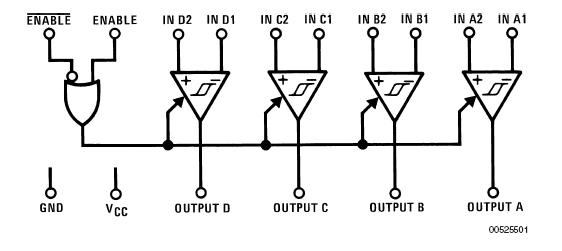

Diagrams
