Product Summary
The DS14C88MX is a quad CMOS line driver. The DS14C88MX, pin-for-pin compatible to the DS1488/MC1488, is designed to interface data terminal equipment (DTE) with data circuit-terminating equipment (DCE). This device translates standard TTL/CMOS logic levels to levels conforming to EIA-232-D and CCITT V.28 standards. The DS14C88MX is fabricated in low threshold CMOS metal gate technology. The device provides very low power consumption compared to its bipolar equivalents: 500 μA (DS14C88) versus 25 mA (DS1488).
Parametrics
DS14C88MX absolute maximum ratings: (1)Supply Voltage: V+ Pin +13V, V-Pin -13V; (2)Driver Input Voltage: (V+) +0.3V to GND -0.3V; (3)Driver Output Voltage: |(V+)- VO|≤30V, |(V-)- VO|≤30V; (4)Continuous Power Dissipation @+25℃: N Package 1513 mW, M Package 1063 mW; (5)Junction Temperature: +150℃; (6)Lead Temperature (Soldering 4 seconds): +260℃; (7)Storage Temperature Range: -65℃ to +150℃.
Features
DS14C88MX features: (1) Meets EIA-232D and CCITT V.28 standards; (2) LOW power consumption; (3) Wide power supply range: ±5V to ±12V; (4) Available in SOIC package.

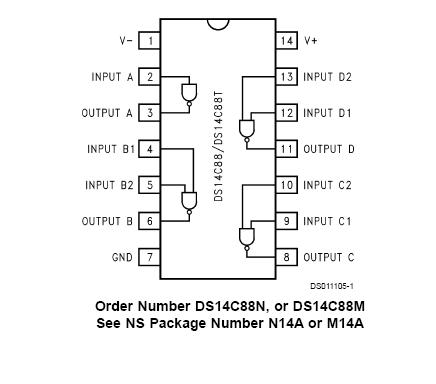

Diagrams
