CY7C68013A-128AXC

CY7C68013A-128AXC, low power USB 2.0 microcontroller, 128LQFP, –0.5V to +4.0V, 300mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $9.01~9.02 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $9.01~9.02

PartNumber:: CY7C68013A-128AXC

Brand:: Cypress Semiconductor - Cypress | Pack: TQFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-16

From Other Seller

Part Number:CY7C68013A-128AXC
US $9.01 - 9.02
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

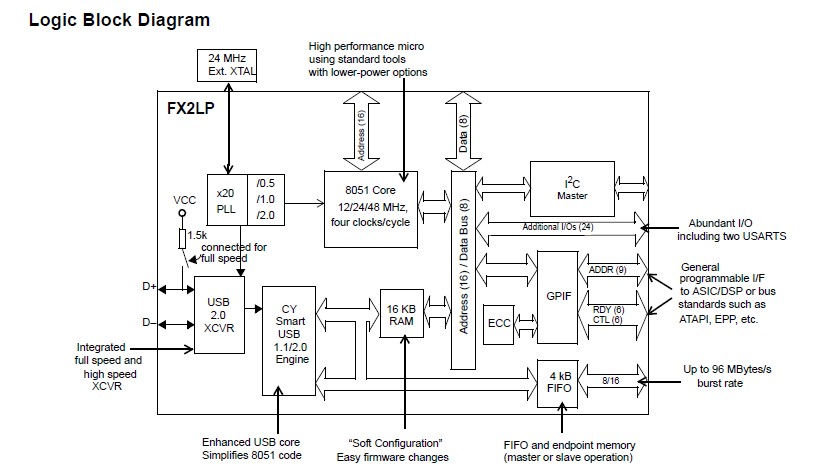

The CY7C68013A-128AXC is a highly integrated, low power USB 2.0 microcontroller. By integrating the USB 2.0 transceiver, serial interface engine (SIE), enhanced 8051 microcontroller, and a programmable peripheral interface in a single chip, Cypress has created a cost effective solution that provides superior time-to-market advantages with low power to enable bus powered applications. The applications of the CY7C68013A-128AXC include Portable video recorder, MPEG/TV conversion, DSL modems, ATA interface, Memory card readers, Legacy conversion devices, Cameras, Scanners, Home PNA, Wireless LAN, MP3 players and Networking.

Parametrics

CY7C68013A-128AXC absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature with; (3)Power Supplied (Commercial): 0℃ to +70℃; (4)Ambient Temperature with Power Supplied (Industrial): –40℃ to + 105℃; (5)Supply Voltage to Ground Potential: –0.5V to +4.0V; (6) DC Input Voltage to Any Input Pin: 5.25V; (7) DC Voltage Applied to Outputs; (8) in High Z State: –0.5V to VCC + 0.5V; (9) Power Dissipation: 300 mW; (10) Static Discharge Voltage>2000V.

Features

CY7C68013A-128AXC features: (1)USB 2.0 USB IF High Speed Certified (TID # 40460272); (2)Single Chip Integrated USB 2.0 Transceiver, Smart SIE, and Enhanced 8051 Microprocessor; (3)Fit, Form, and Function Compatible with the FX2; (4)Ultra Low Power: ICC No More than 85 mA in any Mode; (5)16 KBytes of On-Chip Code/Data RAM; (6)Four Programmable BULK/ INTERRUPT/ ISOCHRONOUS Endpoints; (7)Additional Programmable (BULK/INTERRUPT) 64 Byte Endpoint; (8)8-bit or 16-bit External Data Interface; (9)Smart Media Standard ECC Generation.
