Product Summary

The CY7C1019DV33-10ZSXI is a high-performance CMOS static RAM organized as 131,072 words by 8 bits. Easy memory expansion is provided by an active LOW Chip Enable (CE), an active LOW Output Enable (OE), and three-state drivers. The CY7C1019DV33-10ZSXI has an automatic power-down feature that significantly reduces power consumption when deselected. Writing to the CY7C1019DV33-10ZSXI is accomplished by taking Chip Enable (CE) and Write Enable (WE) inputs LOW. Data on the eight I/O pins (I/O0 through I/O7) is then written into the location specified on the address pins (A0 through A16).

Parametrics

CY7C1019DV33-10ZSXI absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Supply Voltage on VCC to Relative GND: –0.3V to + 4.6V; (4)DC Voltage Applied to Outputs in High-Z State:–0.3V to VCC + 0.3V; (5)DC Input Voltage: –0.3V to VCC + 0.3V; (6)Current into Outputs (LOW): 20 mA; (7)Static Discharge Voltage(per MIL-STD-883, Method 3015): > 2001V; (8)Latch-up Current: > 200 mA.

Features

CY7C1019DV33-10ZSXI features: (1)Pin- and function-compatible with CY7C1019CV33; (2)High speed: tAA = 10 ns; (3)Low Active Power: ICC = 60 mA @ 10 ns; (4)Low CMOS Standby Power: ISB2 = 3 mA; (5)2.0V Data retention; (6)Automatic power-down when deselected; (7)CMOS for optimum speed/power; (8)Center power/ground pinout; (9)Easy memory expansion with CE and OE options; (10)Available in Pb-free 32-pin 400-Mil wide Molded SOJ, 32-pin TSOP II and 48-ball VFBGA packages.

Diagrams

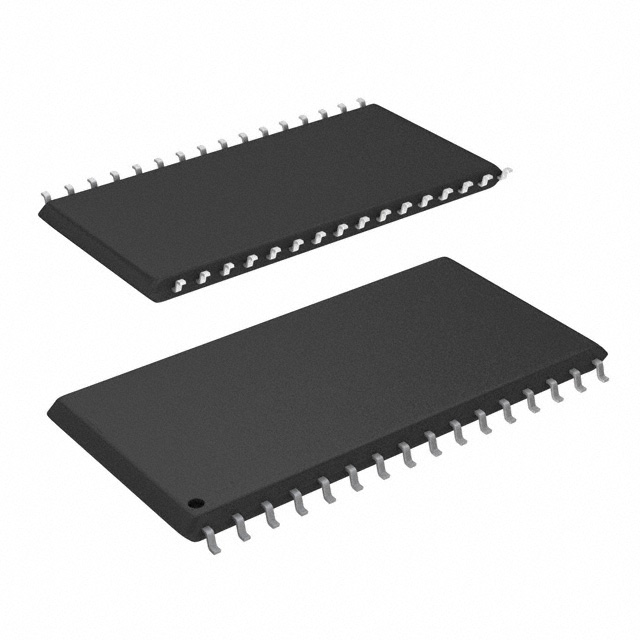

CY7C1019DV33-10ZSXI diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CY7C1019DV33-10ZSXI
CY7C1019DV33-10ZSXI
Cypress Semiconductor
SRAM 1M 512K IND FAST ASYNC SRAM
Data Sheet
0-1: $1.69
1-25: $1.46
25-100: $1.38
100-250: $1.15
CY7C1019DV33-10ZSXIT
CY7C1019DV33-10ZSXIT
Cypress Semiconductor
SRAM 1M 512K IND FAST ASYNC SRAM
Data Sheet
0-700: $1.15
700-1000: $1.07
1000-2000: $1.03
2000-5000: $1.01
