Product Summary

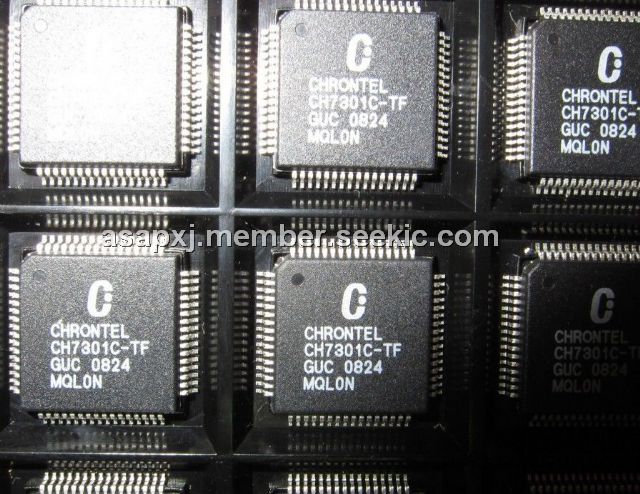

The CH7301C-TF is a display controller device.The CH7301C-TF accepts a digital graphics input signal, and encodes and transmits data through a DVI or DFP (Digital flat panel). The device of the CH7301C-TF accepts data over one 12-bit wide variable voltage data port which supports different data formats including RGB and YCrCb.
Parametrics
CH7301C-TF absolute maximum ratings: (1)All power supplies relative to GND:-0.5 to 5.0V; (2)Analog output short circuit duration: Indefinite Sec; (3)Ambient operating temperature:0 to 85℃; (4)Storage temperature:-65 to 150℃; (5)Junction temperature:150℃; (6)Vapor phase soldering (5 seconds):150℃; (7)Vapor phase soldering (11 seconds):245℃; (8)Vapor phase soldering (60 seconds):225℃.
Features
CH7301C-TF features: (1)DVI Transmitter up to 165M pixels/second; (2)DVI low jitter PLL; (3)DVI hot plug detection; (4)Supporting graphics resolutions up to 1600x1200 pixels and 1920x1200 reduced blanking; (5)Providing RGB output; (6)DAC connection detection; (7)Programmable power management; (8)Fully programmable through serial port; (9)Complete Windows and DOS driver support; (10)Low voltage interface support to graphics device; (11)Three 10-bit video DAC outputs; (12)Offered in a 64-pin LQFP package.

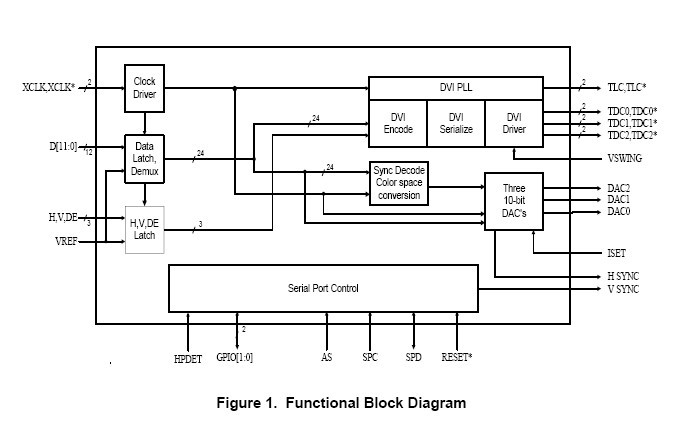

Diagrams
 |
